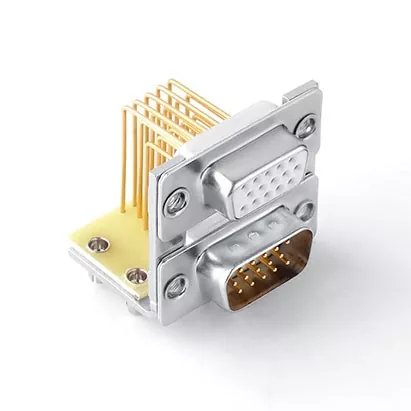

What are the main functions of D-SUB connectors?

D-SUB connectors are widely used in industrial and electronic equipment that rely on signal transmission due to their stable electrical performance and mechanical strength.

The iconic D-shaped metal shielding shell design can effectively suppress electromagnetic interference and is suitable for serial data transmission in scenarios such as computers and communication equipment. For example, the traditional VGA interface uses DB15 type to carry analog video signals, and the RS-232 standard uses DB9 to achieve serial communication between devices.

In the field of industrial automation, D-SUB connectors are often used to connect PLC controllers with sensors and actuators. Its multi-point configuration (such as DB25) can support the centralized transmission of complex control signals, and armored products can better withstand harsh working conditions such as vibration and dust.

Military-grade D-SUB with gold-plated contacts in aerospace equipment achieves moisture-proof and salt spray-proof functions through special sealing treatment, meeting the high reliability requirements of airborne electronic systems. The multi-parameter module of medical monitoring instruments often integrates the transmission of bioelectric signals such as electrocardiogram and blood oxygen through a high-density D-SUB interface, and the shielding layer design effectively isolates external noise. In addition, professional audio systems use DB25 connectors to carry multi-channel balanced audio signals, and its snap-on locking mechanism ensures the stability of the connection during performances.

With the popularity of high-speed digital interfaces, D-SUB connectors are gradually being replaced in the consumer electronics field, but they still have advantages in industrial control, test instruments and other scenarios. In response to customized needs, hybrid D-SUBs are derived, which can integrate power, signal and optical fiber channels at the same time.

When installing D-SUB connectors, pay attention to the pin welding sequence and shielding layer grounding to prevent signal crosstalk. In humid or corrosive environments, the use of potting glue sealed products can extend the service life.
