9 Pin Standard Dual Port D Sub Connector

SIGNALORIGIN® low price 9 pin standard dual port d sub connector with safety UL certification and ISO 9001 quality standards. Signal Origin manufactures more than 300 variants of different connectors such as Standard and High density D-Sub Connectors, Combination power D-sub Connectors, Combination Coaxial D-Sub Connectors, IP67 waterproof D-Sub Connectors, Circular Connectors, D-sub contacts and hoods.

Send Inquiry

Product Description

Product Introduction of the 9 Pin Standard Dual Port D Sub Connector

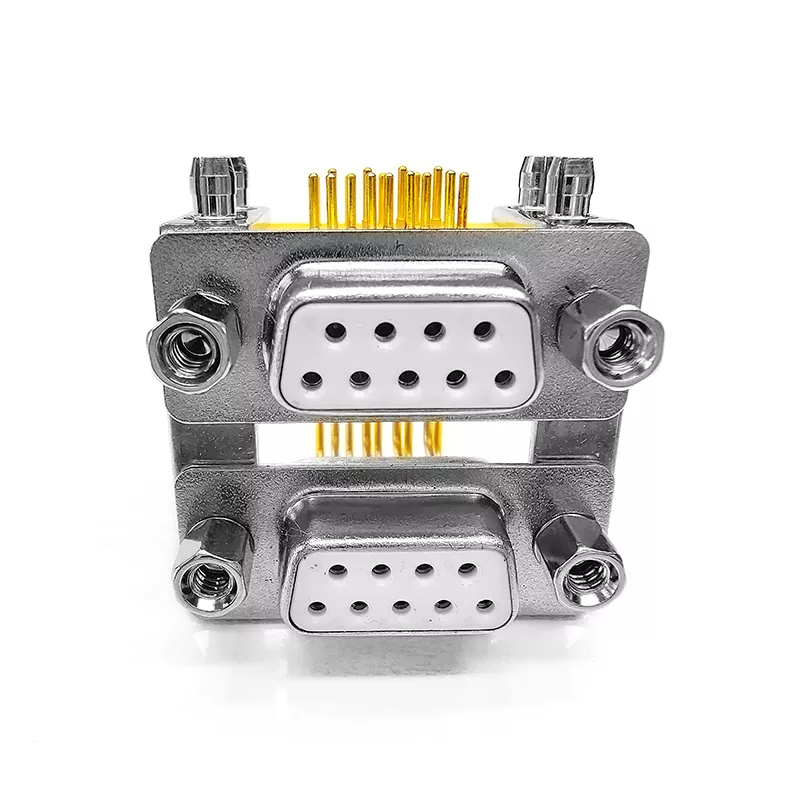

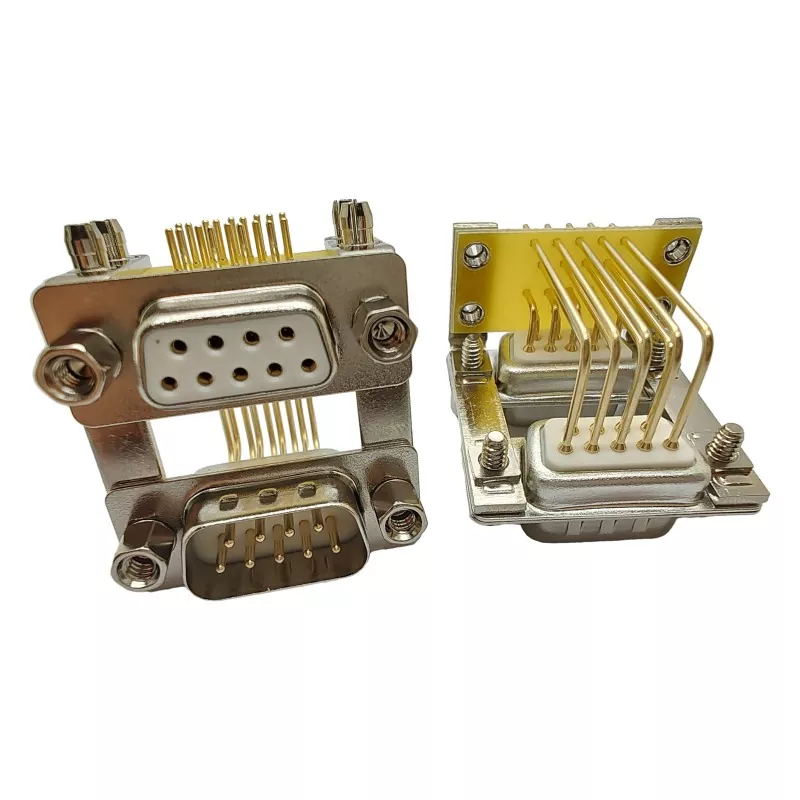

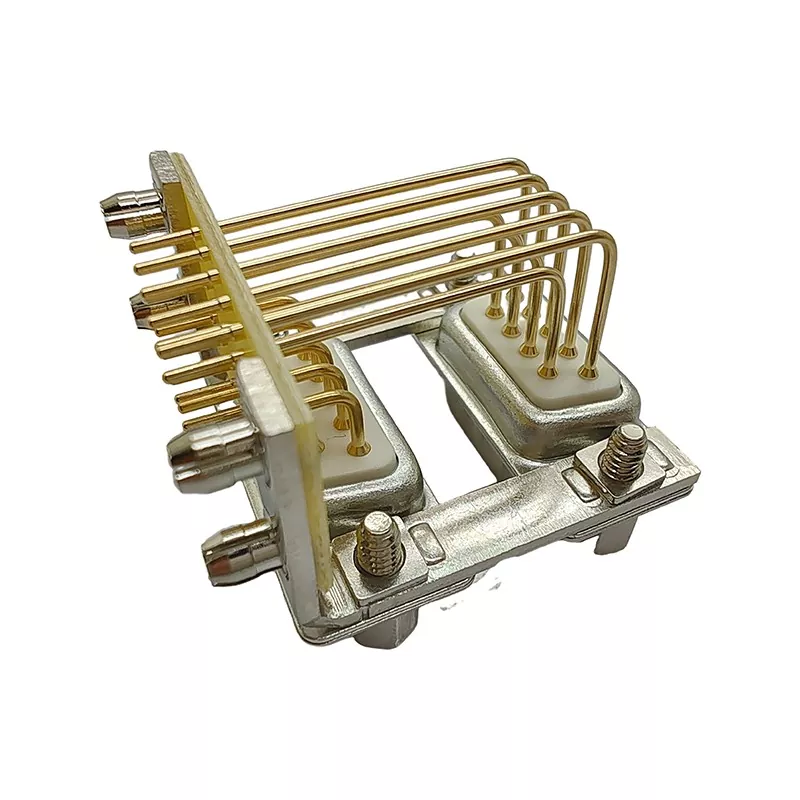

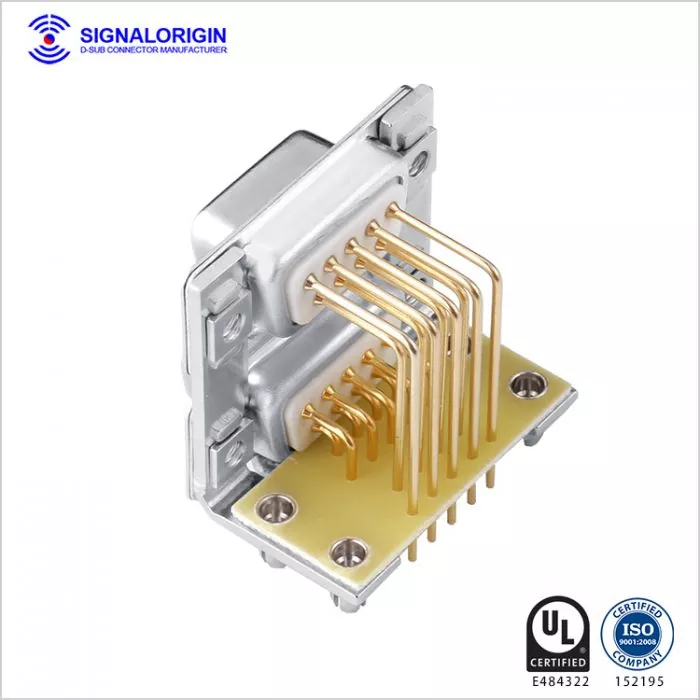

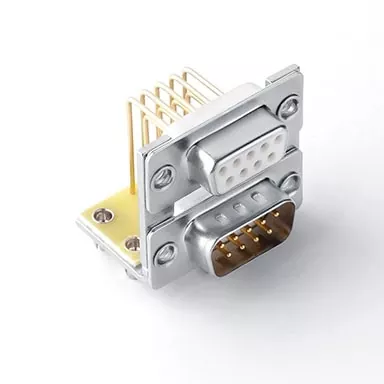

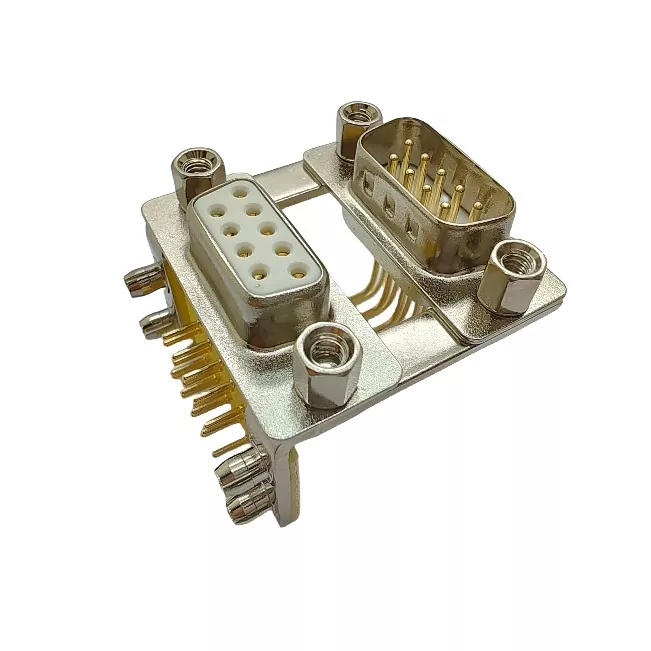

Dual-Port right angle D-sub 9PIN used to save panel and board space. These Dual-port right angle d-subs are standard density connectors. However, with the ever changing nature of modern technology and the fact that it continues to become lighter and sleeker, D Sub 9 connector is being used less and less on modern devices such as laptops, monitors, and TVs where physical depth and weight are important to the user. Absolutely, you just need to choose what works best for you.

Product Parameter (Specification) of the 9 Pin Standard Dual Port D Sub Connector

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contacts material

Phosphor Copper

Contact plating

Gold plated on nickel

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

300V AC

Current rating

3AMP

Contacts OD

∮1.0

Contact resistance

15mΩ Max

Mechanical

Dielectric withstanding voltage

1000V AC rms  at 1 minute

Durability

500 cycles

Operating temperature

-55°C ~125°C

Product Feature And Application of the 9 Pin Standard Dual Port D Sub Connector

SIGNALORIGIN always has a wide range of raw materials available and is ready to deliver to the customer the specified quantities to meet production schedules.

Product Details of the 9 Pin Standard Dual Port D Sub Connector

Information required for customized the 9 Pin Standard Dual Port D Sub Connector


1.Customize the parameters. Provide a drawing with detailed parameters or send samples to our company.

2.The application and function of product . What is the specific purpose of your customization? Such as gold plating , terminal length and other requirements

3. Packaging requirements, if your product packaging has special requirements, please explain in advance.


Hot Products Recommendation

FAQ

1).When we can get the sample? how about the cost?

Sample will be sent in 3-5 days for free if buyer agree to pay for shipping cost.


2)If I don't have any drawings,can you still quote my product?

Yes,just provide as many details as possible about your product ,our qualified engineering staff can produce drawings.


3).What is the Minimum Order Quantity(MOQ)?

Normally our MOQ is 100pcs. Small order is also available.


4).What is the difference between male and female D-sub connectors?

Male and female D-sub connectors refer to the two different types of connectors that mate with each other. A male connector has pins that protrude from its body and are designed to fit into the corresponding sockets of a female connector. Conversely, a female connector has sockets that accept the pins of a male connector. When connecting two devices, one would typically have a male D-sub connector, and the other would have a female D-sub connector to establish a secure and reliable connection.


5).Can D-sub connectors be used for high-power applications?

D-sub connectors are not typically designed for high-power applications. They are primarily intended for low to moderate power levels, focusing on data and signal transmission rather than power delivery. If you need to connect devices that require high-power connections, it is advisable to use connectors specifically designed for high-current applications.
