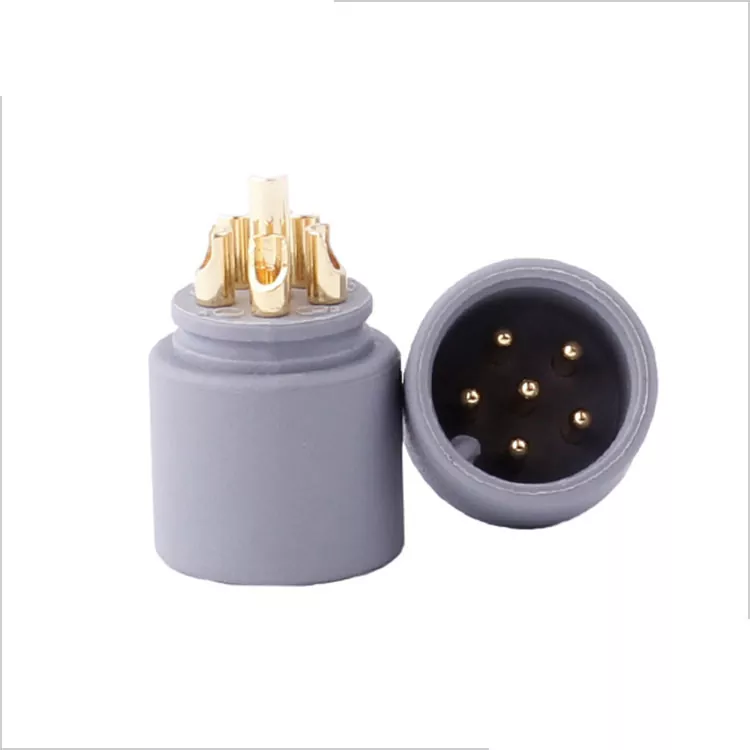

Circular Connector M8 6Pin Male
  • Circular Connector M8 6Pin Male - 0 Circular Connector M8 6Pin Male - 0
  • Circular Connector M8 6Pin Male - 1 Circular Connector M8 6Pin Male - 1

Circular Connector M8 6Pin Male

M8 circular connector is one of the common connectors in today's industrial automation field, developed and designed for industrial automation 8MM connecting caliber sensors, the connector is waterproof, oil-resistant, cold-resistant, stable performance, efficient and fast connection, widely used in photoelectric switches, proximity switches, sensors and a variety of industrial wiring systems.

Send Inquiry

Product Description

Product Introduction of the Circular Connector M8 6Pin Male

The common M8 circular connector, the thread specification is M8*1.0. This kind of connector is different from M12 as many specifications, only 3-4 kinds of code. Since the M8 pin pitch is too small, it is not suitable for high voltage applications, only for 50V AC or 60V DC or less.

SIGNALORIGIN® has a wide range of diversified product series; for the majority of customers in the field of industrial automation in the actual application, we can also provide professional customized product series and efficient technical support services, to help our partners to stand out in the fierce competition!

Product Parameter (Specification) of the Circular Connector M8 6Pin Male

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contact plating

Gold plated

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

120V AC

Current rating

5AMP

Contact resistance

30mΩ Max

Insulation resistance

1000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

750V AC rms  at 1 minute

Durability

500 cycles

Operating temperature

-40°C ~125°C

Product Feature of the Circular Connector M8 6Pin Male

All contacts are machined copper alloy, full gold flash.

This connector is widely used in industrial applications worldwide.

Product Details of the Circular Connector M8 6Pin Male

Customized processes of the Circular Connector M8 6Pin Male

certificate of the Circular Connector M8 6Pin Male

FAQ

1) .What is the difference between circular and rectangular connectors?

Circular is ideal for single-use low-power connection points, while rectangular connectors are perfect for high-power or multi-use connection. For some applications, each connection point needs to be separate.


2) .How do circular connectors work?

They contain multiple pins, or contacts that connect with applicable parts to transfer electrical power, signals, or data. They may also be referred to as circular interconnects. The internal contacts are mated with wire or cable to carry a signal.


3) .What is the D-sub connector family?

(D-SUBminiature connectors) A family of plugs and sockets widely used in communications and on earlier PCs. For example, the analog VGA monitor interface uses a D-sub 15-pin plug and socket. Also called "DB connectors" and "D-subs," they come in 9, 15, 25, 37 and 50 pin varieties.


4) .What is the voltage rating of D-sub?

D-sub connectors come rated for a variety of voltages. Some D-sub connectors are safely rated to carry up to 1800VAC through each contact.


5) .What is D-sub port used for?

Both D-sub connectors and VGA connectors are common standards for computer monitors, laptops, and other video devices. They're used for transmitting analog signals like audio and video from one source to another.
