Circular M12 8 Pin Connector

Welcome to our collection of M12 8-Pin Connectors! In this category, you’ll find a variety of options tailored to fit your specific requirements. We manufactured these M12 connectors with high-quality materials for durability. They’ll ensure stable connections in demanding environments.

Send Inquiry

Product Description

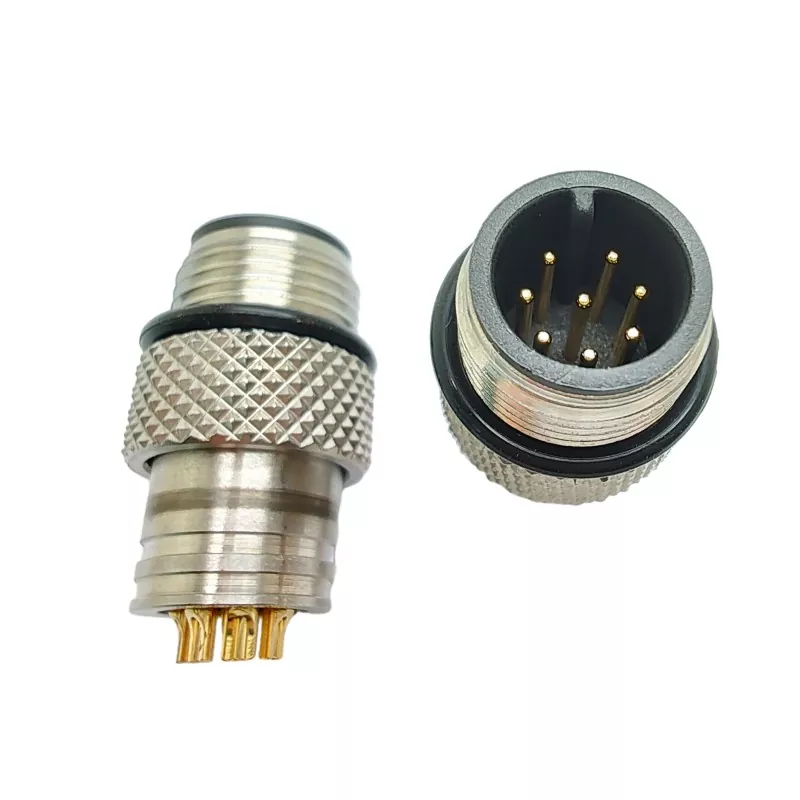

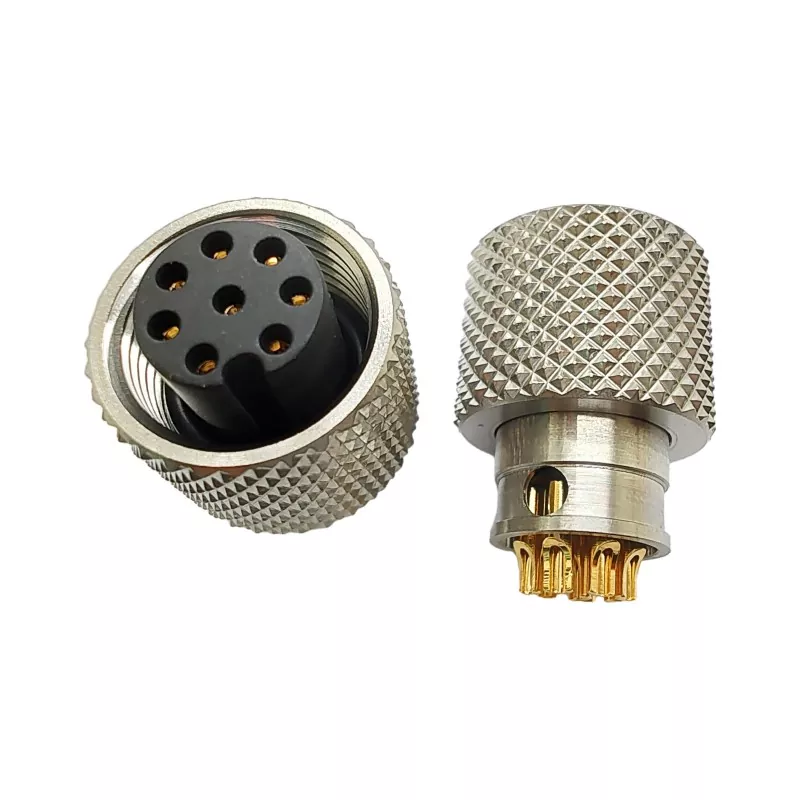

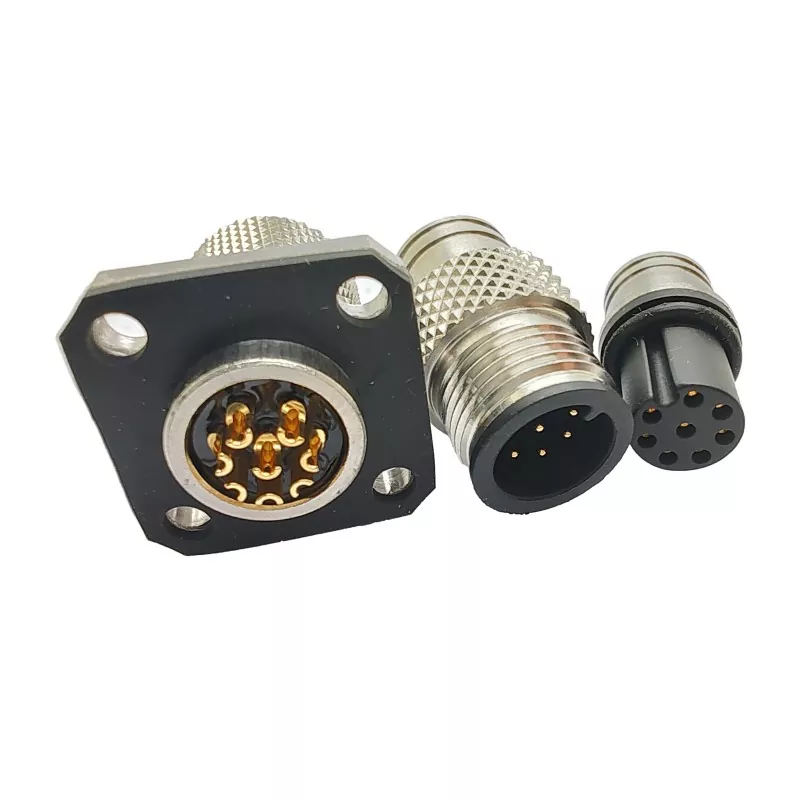

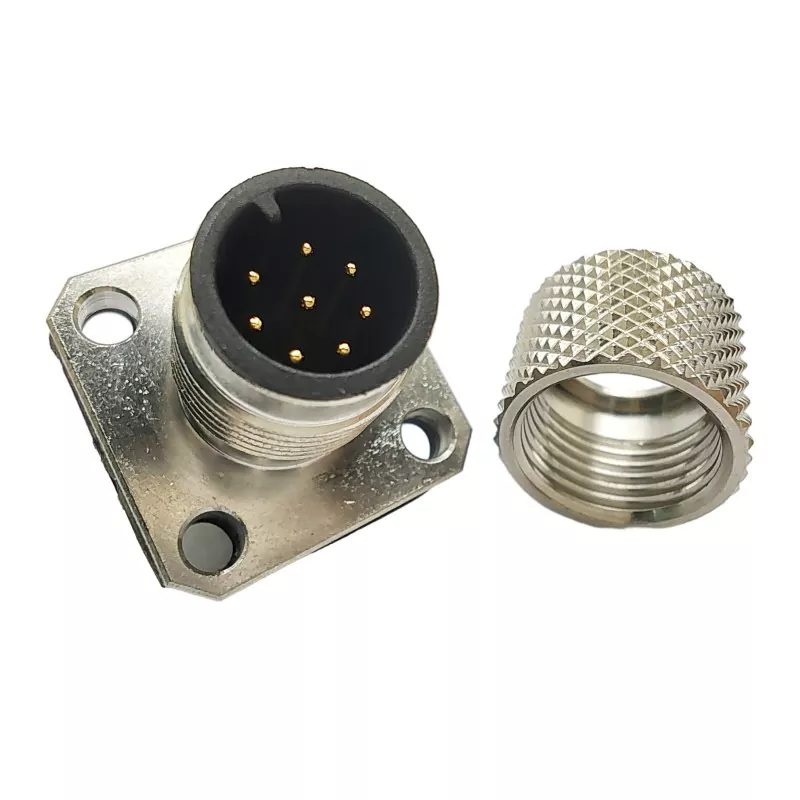

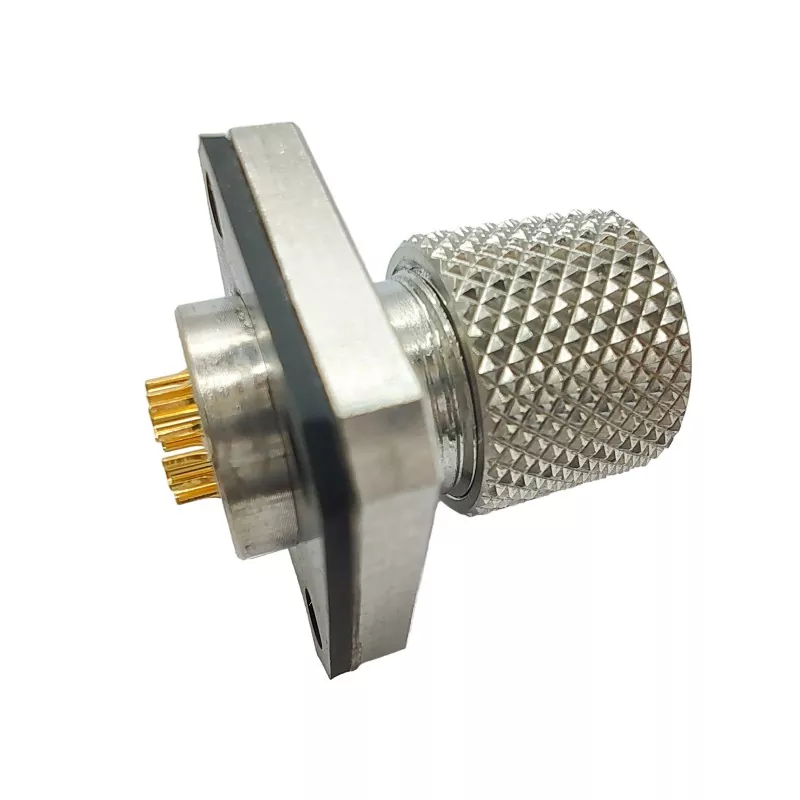

Product Introduction of the Circular M12 8 Pin Connector

SIGNALORIGIN is the M12-8 pin electrical circular connectors manufacturer. We offer a variety of connectors for signal transmission in sizes M5 to M23. Tailored to your applications, 3 to 19-pos. versions are available with IDC displacement connection, screw, spring, solder, crimp or solder-in connection.

Product Parameter (Specification) of the Circular M12 8 Pin Connector

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contact plating

Gold plated

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

120V AC

Current rating

5AMP

Contact resistance

30mΩ Max

Insulation resistance

1000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

750V AC rms  at 1 minute

Durability

500 cycles

Operating temperature

-40°C ~125°C

Product Feature of the Circular M12 8 Pin Connector

Ensure all the process follow the quality management system, include Purchase, Manufacturing, Approve, Testing, and Protection.

We focus on quality, resource, responsibility, and measurement.

Product Details of the Circular M12 8 Pin Connector

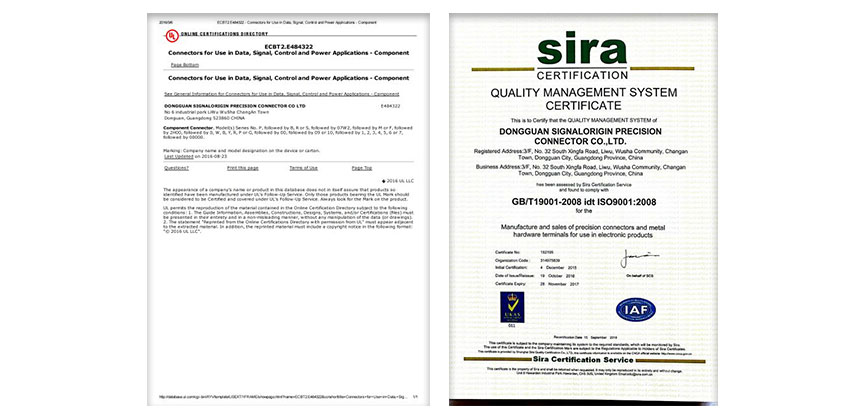

Product Qualification of the Circular M12 8 Pin Connector

Main products

Standard and High density D-Sub Connectors, Combination power D-sub Connectors, Combination Coaxial D-Sub Connectors, IP67 waterproof D-Sub Connectors, Circular Connectors, D-sub contacts and hoods


FAQ

1) .How to choose the right D-SUB connector for my application?

When choosing the right D-subminiature connector , there are a variety of factors to take into consideration, including operating conditions, housing materials, and pin type. All of these aspects will affect and enable the right configuration for your chosen application.


2) .Can you provide a Certificate of compliance with your goods?

Yes, our UL can be supplied , if requested at the time of order placement.


3) .Does D-sub support 4K?

There is no such thing as VGA (D-Sub 15) 4K signal


4) .What are the benefits of M12 connectors?

Improved Reliability: M12 connectors are made with strong and long-lasting materials, so they are very resistant to vibrations, shocks, and environmental factors like dust, wetness, and changes in temperature.


5) .What's your delivery time?

5-7 working days for samples, 20-35 working days for bulk order.
