D-Sub Contact Terminal Straight Type

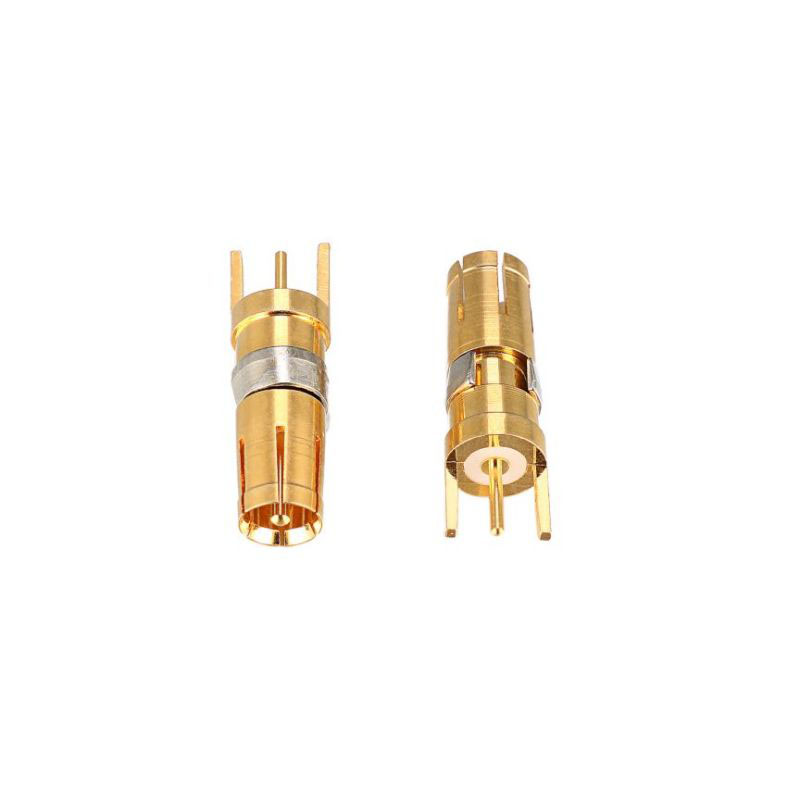

  • D-Sub Contact Terminal Straight Type - 0 D-Sub Contact Terminal Straight Type - 0

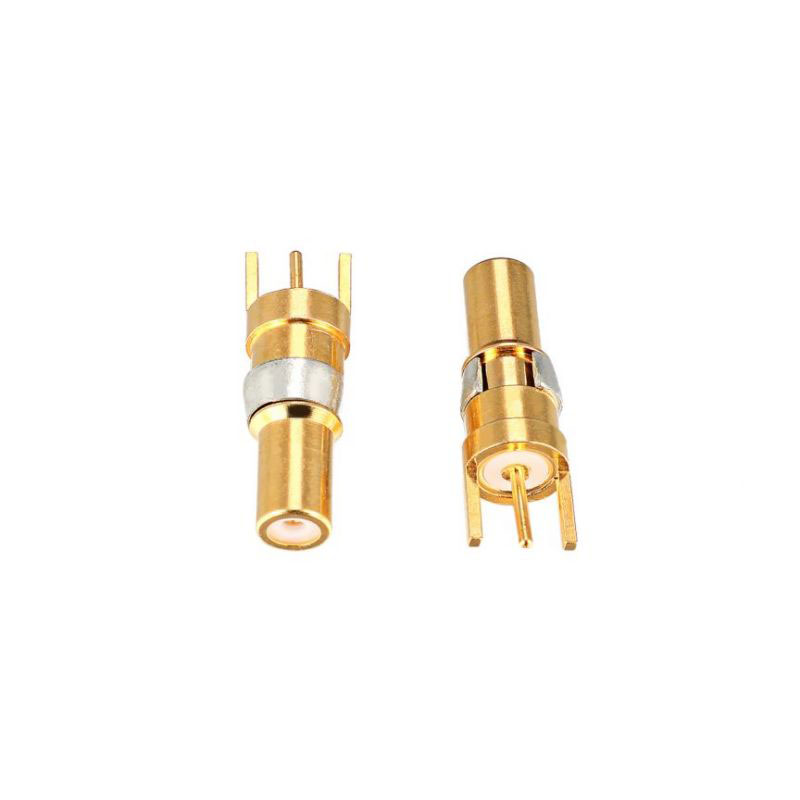

  • D-Sub Contact Terminal Straight Type - 1 D-Sub Contact Terminal Straight Type - 1

D-Sub Contact Terminal Straight Type

SIGNALORIGIN® is China manufacturer and supplier who mainly produces D-Sub Contact Terminal Straight Type with many years of experience. The invention of D Sub contact terminal straight type dates back to the 1940s during World War II, with the vast majority of RF/microwave transmission lines and connectors utilizing a 50Ω characteristic impedance, and some systems utilizing a 75Ω characteristic impedance.

Send Inquiry

Product Description

Product Introduction of the D-Sub Contact Terminal Straight Type

SIGNALORIGIN® is a leading China D-Sub Contact Terminal Straight Type manufacturer. D Sub contact terminals are commonly used in wireless communications and RF equipment, featuring a wide bandwidth range, reliable connectivity and easy installation and maintenance. D Sub contact terminals are also used in cell phones, base stations, wireless routers and other equipment to realize signal transmission and antenna connection. SIGNALORIGIN® can customize all kinds of special connectors and terminals according to the special needs of different customers, welcome to consult about connector products and buy products from SIGNALORIGIN® .

Product Parameter (Specification) of the D-Sub Contact Terminal Straight Type

Material

Contact Material

Brass

ContactPlating

Goldplated 1U’-30U’

Electrical

Working Voltage

120V AC

ContactResistance

3mΩ

Coaxial Contact Impedance

50Ω  75Ω

Insulation Resistance

2000mΩ Min

Voltage Standing Wave Ratio

1.3max

Mechanical

DielectricWithstanding Voltage

750V AC rms  at 1 minute

Durability

500 cycles

OperatingTemperature

-55°C~125°C

Product Feature of the D-Sub Contact Terminal Straight Type

More than 10 years experiences cooperated with worldwide manufacturers and wholesalers, as well as provided OEM for famous connector brands.

Product Details of the D-Sub Contact Terminal Straight Type

Product equipment of the D-Sub Contact Terminal Straight Type

WHY CHOOOSE US

1).We can offer you the high quality & reasonable price.


2).We make mainly D-Sub related connectors and parts, and we stay focused on what we do.


3).All the manufacturing process are controlled by Signalorigin


4).We have 16 years of production experience, all material in ROHS,Reach standard.


5).We offer short delivery times (normally 5-7 days) .


FAQ

1) .How do you mount D sub connectors?

Mount D-Sub connector from inside of panel or enclosure using hex jack screws. Mate connectors and secure backshell thumbscrews to threaded jackscrews. Waterproof IP67 rating is achieved by gaskets / seals in backshell and silicone seal ring in connector.


2) .What is D-sub port used for?

Both D-sub connectors and VGA connectors are common standards for computer monitors, laptops, and other video devices. They're used for transmitting analog signals like audio and video from one source to another.


3) . What is the main function of connector?

An electrical connector is an electromechanical device used to create an electrical connection between parts of an electrical circuit, or between different electrical circuits, thereby joining them into a larger circuit.


4) .How is your product quality?

Our raw materials are purchased from qualified suppliers. And we have a strong quality control team to guarantee our quality according to AQL standard. Signalorigin always care what you care!


5) .What is the M12 standard connection?

The M12 connector is a circular connector with a 12-mm locking thread that is used primarily in factory automation applications for actuators, sensors, industrial ethernet, and Fieldbus. M12 connectors are designed for washdown and corrosive environments. They are available with 3, 4, 5, 8, and 12 pins.
