M16 Circular Connector 4 Pin

SIGNALORIGIN is the M16 4 PIN male female waterproof circular electrical connectors manufacturer. Circular connectors are selected for ease of engagement and disengagement, their ability to conveniently house different types of contacts, their wide range of allowable contact voltages and currents, their ease of environmental sealing and their rugged mechanical performance. SIGNALORIGIN offers an extensive range of Circular Connectors. You can choose from industrial and automation, Mil Spec, RJ45 and DIN types and we also offer a full range of circular connector accessories, including adaptors, backshells, inserts and seals.

Send Inquiry

Product Description

Product Introduction of the M16 Circular Connector 4 Pin

M16 4 pin circular connectors are widely used in various industries due to their stability, reliability, and versatility. Here are some applications:


Transportation: Connecting various sensors, cameras, lighting systems, and communication devices in onboard systems for trains, buses, and automobiles.

Renewable Energy: Connecting sensors, controllers, and power distribution units in renewable energy systems such as solar panels and wind turbines.

Audio Equipment: Connecting speakers, microphones, or other equipment.

Sensors: Connecting various sensors and controllers, such as home security, and automation control equipment.

Pipe Connection: Connecting water pipes, and air pipes in pipe connections.

Small Electrical Equipment: Suitable for some electrical equipment, such as power tools, and small household appliances.

Product Parameter (Specification) of the M16 Circular Connector 4 Pin

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contact plating

Gold plated

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

120V AC

Current rating

5AMP

Contact resistance

30mΩ Max

Insulation resistance

1000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

750V AC rms  at 1 minute

Durability

500 cycles

Operating temperature

-40°C ~125°C

Product Feature of the M16 Circular Connector 4 Pin

Contact terminations can be solder cup, straight, right angle.

Monthly output of finished products more than 2 million pieces, 99.9% qualification rate.

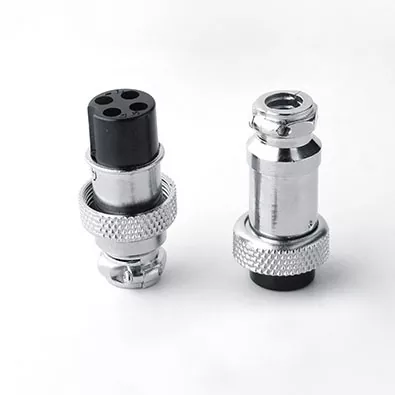

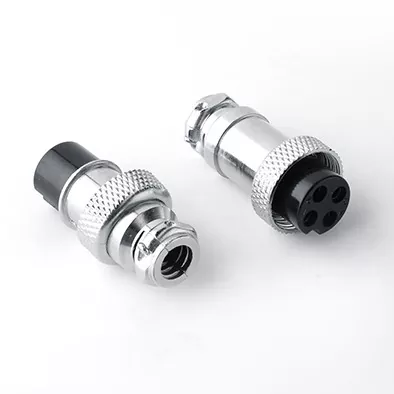

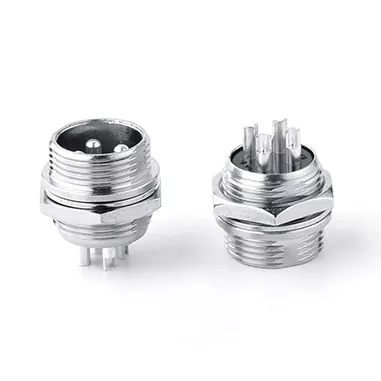

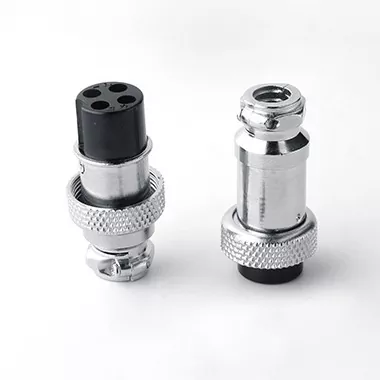

Product Details of the M16 Circular Connector 4 Pin

Product Application of the M16 Circular Connector 4 Pin

Robotics & Automation、Machine Manufacturing、Agriculture

Communication、Military、Medical、Transportation、Harsh Environment


Deliver,Shipping And Serving of the M16 Circular Connector 4 Pin

FAQ

1) .What is the Minimum Order Quantity(MOQ)?

Normally, MOQ is 100pcs, but special requirements can be accepted.


2) .How to choose a circular connector?

Circular connector selection criteria

Number of Contacts: The number of conductive pins in the connector required to carry the signals, data, or power. ...

Termination: How the wire or cable will mate with the conductive contacts in the connector, including solder, wire wrap, lugs, or crimping.


3) .Are all M12 connectors the same?

There are currently more than twenty different types of M12 connector coding identifiable by an alphabetical letter from A to Y. However, connectors coded A, B, C, D and X are the most frequently used.


4) .How to connect a circular connector?

Circular connectors are most often (but not always) connected by threaded areas on the shells. This screw-in connection allows them to be easily and securely locked into position and remain in place despite vibration or impact. Other types of connection systems include bayonet locking, push/pull locking, and snap lock.


5) .What's your delivery time?

5-7 working days for samples, 20-35 working days for bulk order.
