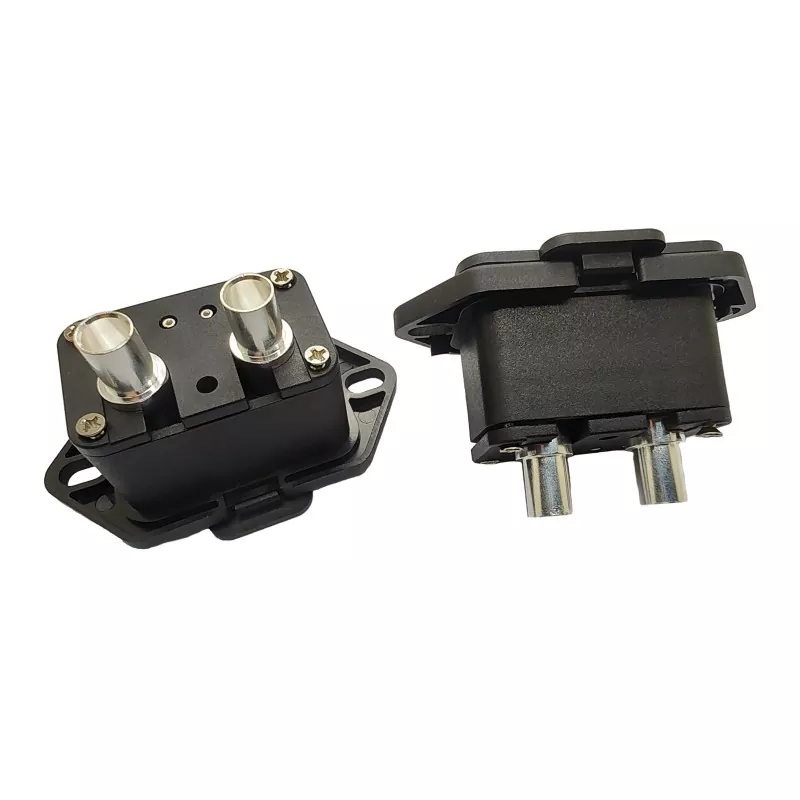

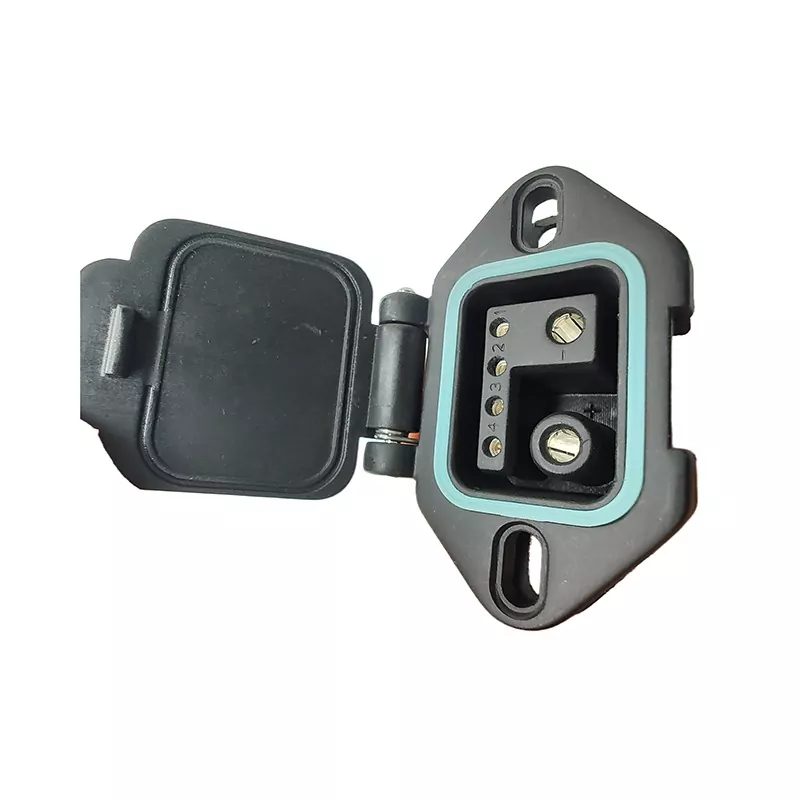

2 and 4 Ebike Connector 90A Female

E-bike charger connector 2and 4 is a charging device specially configured for e-bike batteries. A quality charger is not only effective in prolonging battery life, but also improves charging efficiency and safety. SIGNALORIGIN® has always been in constant search for growth, and has always been driven by the concept of its own innovative ability to promote the continuous progress of the enterprise, specializing in providing customers with high-current connectors ranging from 3A to 90A.

Send Inquiry

Product Description

Product Introduction of the 2 and 4 Ebike Connector 90A Female

At present, the charger of electric bike generally use switching power charger, according to the circuit structure can be divided into two-stage charger and three-stage charger two kinds of chargers, of which the two-stage charger has basically withdrawn from the market, the market is generally used in the most cost-effective three-stage charger with reliable safety performance.

Product Parameter (Specification) of the 2 and 4 Ebike Connector 90A Female

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black (can be customized)

Contact plating

Gold plated

Contact material

Brass

Contact resistance

0.5mΩ Max

Insulation resistance

1000MΩ Max

Withstanding voltage

2000V

Durability

5000 cycles

Operating temperature

-40°C ~200°C

Current rating

15A/30A/60A/90A

Rated voltage

220V AC

Product Feature of the 2 and 4 Ebike Connector 90A Female

The products are standard regular models,please contact us if you need to customize.

Free samples are available.

Product Details of the 2 and 4 Ebike Connector 90A Female

Customized processes of the 2 and 4 Ebike Connector 90A Female

Serving of the 2 and 4 Ebike Connector 90A Female

Inner packing by PE bag and PET boxes,outer packing by carton.

FAQ

1) .What is the circle connector called?

Circular connectors, also called “circular interconnects,” are cylindrical, multi-pin electrical connectors. These devices contain contacts that transmit both data and power.


2) .What is the main function of connector?

An electrical connector is an electromechanical device used to create an electrical connection between parts of an electrical circuit, or between different electrical circuits, thereby joining them into a larger circuit.


3) .How do you connect a D-sub connector?

The D-Sub connectors with crimped contacts are wired by inserting a stripped end of wire into a cavity at the back of the contact. The cavity is then crimped using a crimping tool. The contact is then inserted into the connector, where it is locked.


4) .What are D-sub connectors used for?

D-sub connectors are widely used for data and signal transmission in technology, computing, programming, and communications. They can be found in applications such as computer monitors, printers, keyboards, mice, serial and parallel ports, audio and video interfaces, and networking equipment.


5) .Is D-sub 15 pin VGA?

The VGA connector is a three-row, 15-pin D-subminiature connector referred to variously as DE-15, HD-15 or erroneously DB-15(HD).
