8W8 D Sub Coaxial D Shaped Connector

SIGNALORIGIN is the 8W8 D-sub coaxial connector supplier. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application. This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells.

Send Inquiry

Product Description

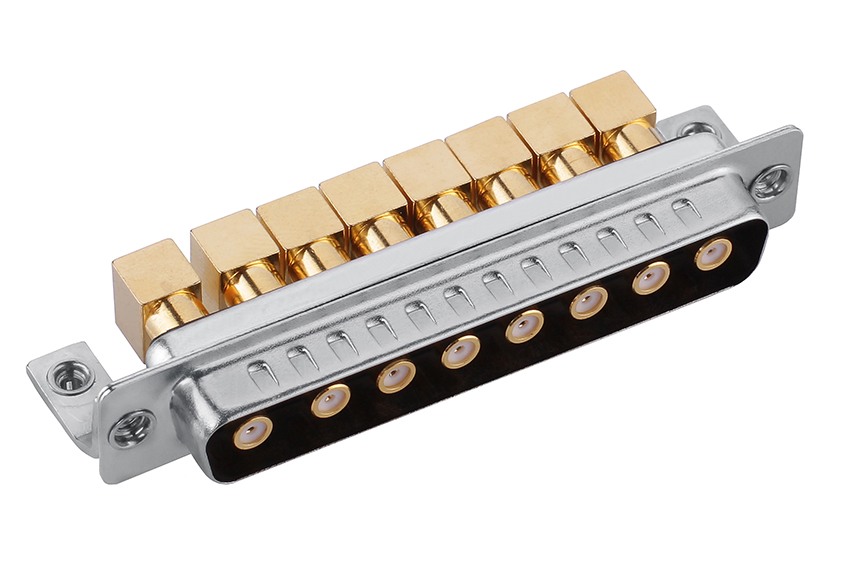

8W8 D Sub Coaxial D Shaped Connector





8W8 D-sub coaxial connector from Signalorigin. All contacts are machined processing, phosphor copper material, gold plated. Coaxial D-Sub have 8 coaxial contacts. It is full layout. The impedance for the coaxial contacts are 50Ω or 75Ω.

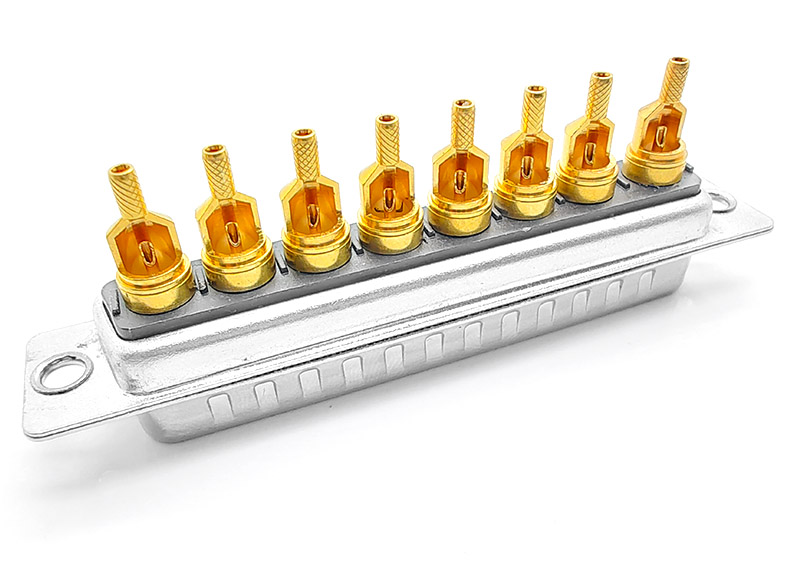

8W8 D Sub Coaxial D Shaped Connector

1.Product Introduction of the 8W8 D Sub Coaxial D Shaped Connector

SIGNALORIGIN is the 8W8 D-sub coaxial connector supplier. Machine contacts ensure maximum operational efficiency during high intensity and mission critical application.

This connector is flame retardant glass filled PBT insulators and gold over nickel plated machined contacts are housed in nickel or tin plated steel shells.

2.Product Parameter (Specification) of the 8W8 D Sub Coaxial D Shaped Connector





Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contacts material

Copper  alloy

Contact plating

Gold plated ,1U~30U"

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

300V AC

High frequency contacts current rating

50 or 75 ohm

Contact resistance

2.7mΩ Max

Insulation resistance

2000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

1000V AC rms  at 1 minute

Insertion force

1.0 :3.4 N /PinMAX)

3.6:12 N /PinMAX)

Extraction force

1.0:0.3N /Pin MIN

3.6:2 N /Pin MIN

Durability

500 cycles

Operating temperature

-55°C 125°C









3.Product Feature of the 8W8 D Sub Coaxial D Shaped Connector

(产品展示图。标语:16年生产经验;接触件经过精密加工)

16 Years of Experience

Contacts are precision machined

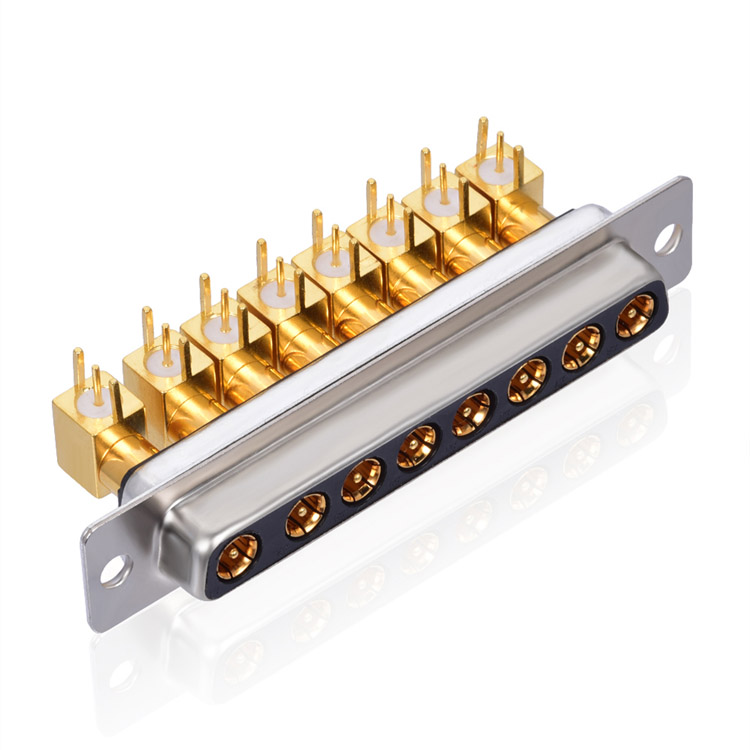

4.Product Details of the 8W8 D Sub Coaxial D Shaped Connector








5.Production process of the 8W8 D Sub Coaxial D Shaped Connector



Lathe Workshop     Injection Molding Workshop    Assemble and Install








  Packing          Manual Inspection      Machine Testing

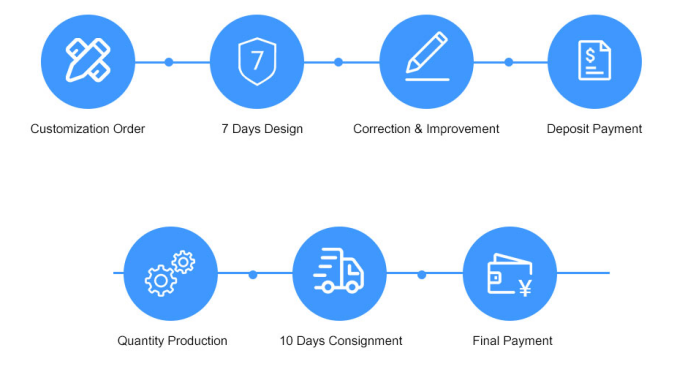

6.Deliver,Shipping And Serving of the 8W8 D Sub Coaxial D Shaped Connector









7. FAQ

1) .How do you connect a D-sub connector?

The D-Sub connectors with crimped contacts are wired by inserting a stripped end of wire into a cavity at the back of the contact. The cavity is then crimped using a crimping tool. The contact is then inserted into the connector, where it is locked.



2) .What is the D-sub connector family?

(D-SUBminiature connectors) A family of plugs and sockets widely used in communications and on earlier PCs. For example, the analog VGA monitor interface uses a D-sub 15-pin plug and socket. Also called "DB connectors" and "D-subs,"



3) .Is D-sub 15 pin VGA?

The VGA connector is a three-row, 15-pin D-subminiature connector referred to variously as DE-15, HD-15 or erroneously DB-15(HD).



4) .Can l order samples first to test the quality?

Yes,we can make samples before mass production.



5) .How do you mount D sub connectors?

Mount D-Sub connector from inside of panel or enclosure using hex jack screws . Mate connectors and secure backshell thumbscrews to threaded jackscrews. Waterproof IP67 rating is achieved by gaskets / seals in backshell and silicone seal ring in connector.
