Combo D-Sub 2V2 High Current Connector

SIGNALORIGIN® is a leading China Combo D-Sub 2V2 High Current Connector manufacturer, supplier. d sub 2V2 male and female mixed d-sub power connector. D-Sub IP 67 connector series is fully dedicated to water resistant applications and fulfills the rigorous requirements of IP 67. This product family is aimed at equipment placed in harsh environments, indoors and outdoors, where connectors are exposed to moisture, dust and dirt.

Send Inquiry

Product Description

Product Introduction of the Combo D-sub 2V2 High Current Connector

Find a huge selection of Combo D-Sub 2V2 High Current Connector from China at SIGNALORIGIN®. d sub 2V2 combination connectors. Complete solutions are available for PCB and cable mount applications. The cable connector range is complemented by a selection of hoods. For PCB applications, connectors for water resistant panel mounting purposes are available, with or without rear frame.

Product Parameter (Specification) of the Combo D-sub 2V2 High Current Connector

Material	Insulator material	PBT+30% G.F (UL94V-O)
	Insulator color	Black/Blue (can be customized)
	Contacts material	Copper alloy
	Contact plating	Goldplated ,1U”~30U"
	Shell material	Steel/SPCC-SD, nickel or tin plated
Electrical	Dielectric rating	300V AC
	High power contacts current rating	10A-40A(customized)
	Contact resistance	2.7mΩ Max
	Insulation resistance	2000MΩ Min at 500V DC
Mechanical	Dielectric withstanding voltage	1000V AC rms at 1 minute
	Insertion force	￠1.0 :3.4 N /Pin（MAX) ￠3.6:12 N /Pin（MAX)
	Extraction force	￠1.0:0.3N /Pin MIN ￠3.6:2 N /Pin MIN
	Durability	500 cycles
	Operating temperature	-55°C～125°C

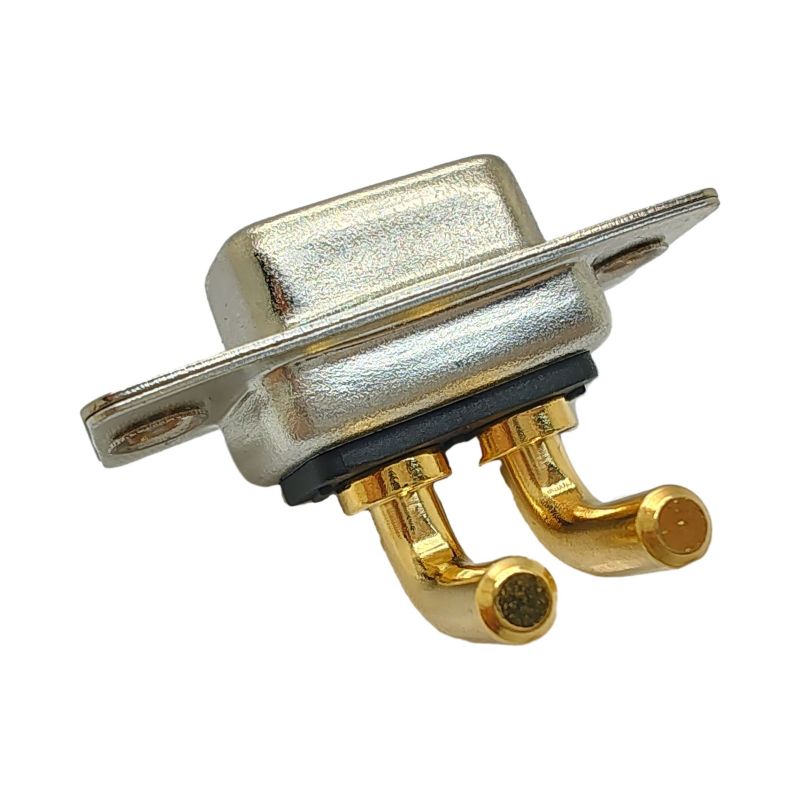

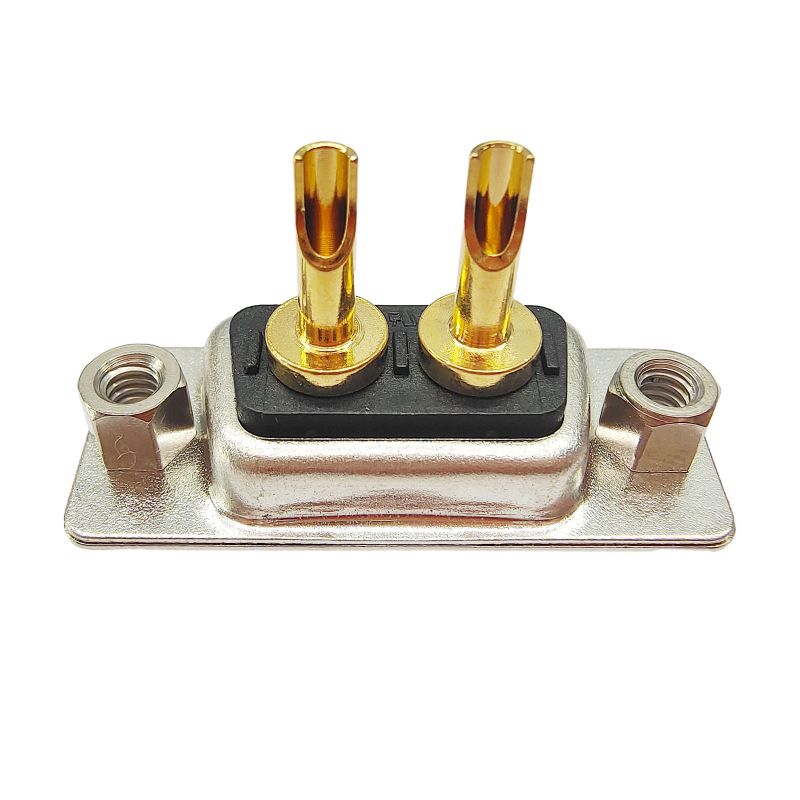

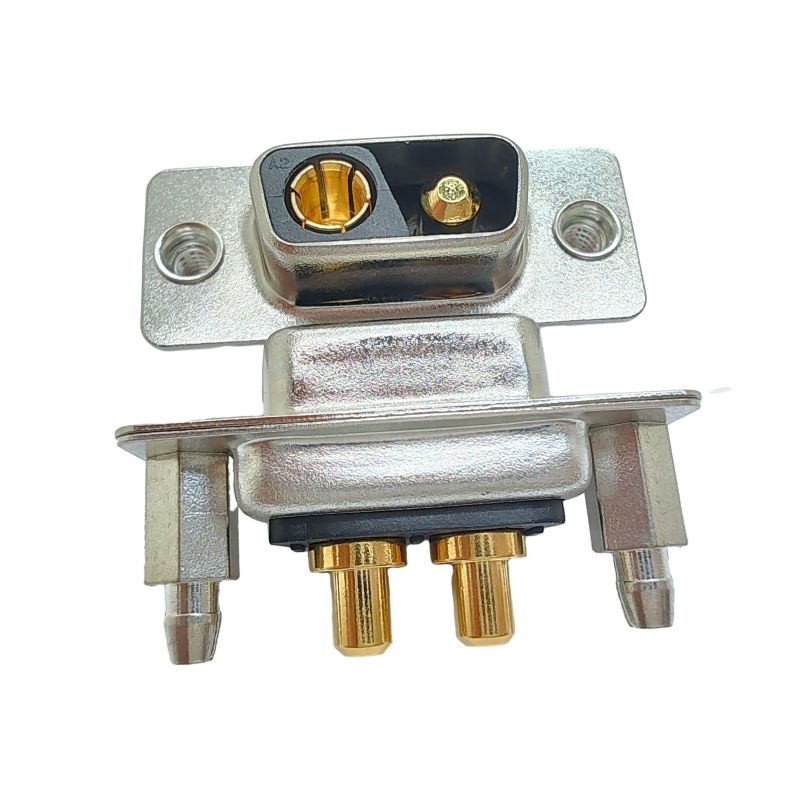

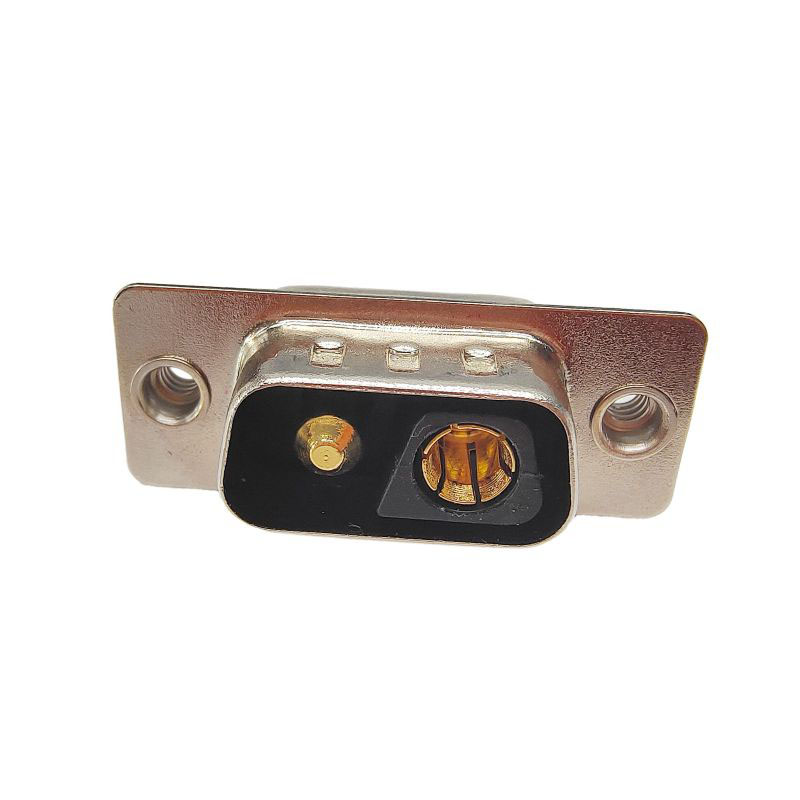

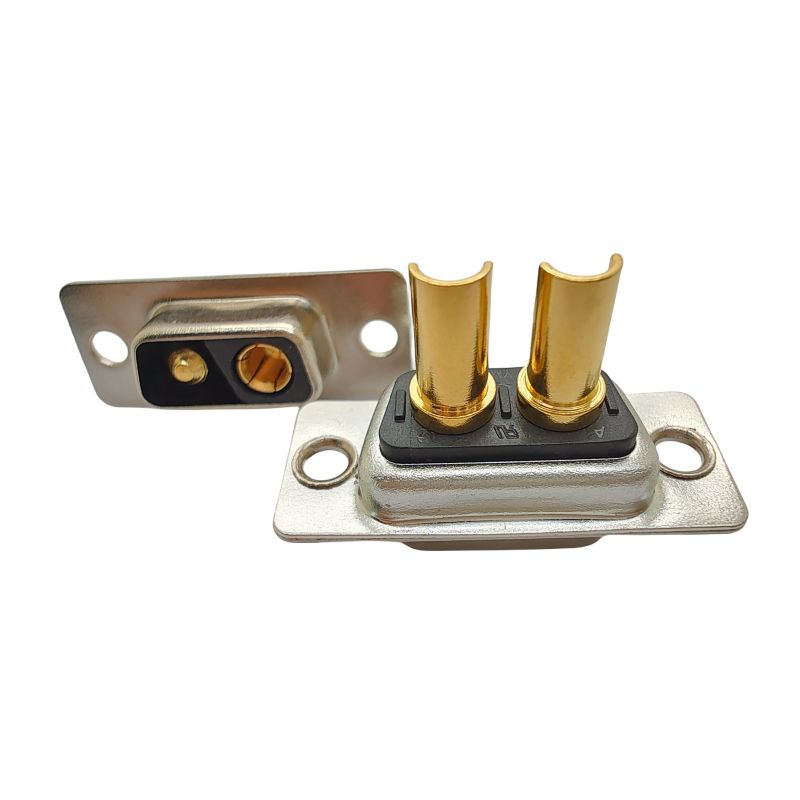

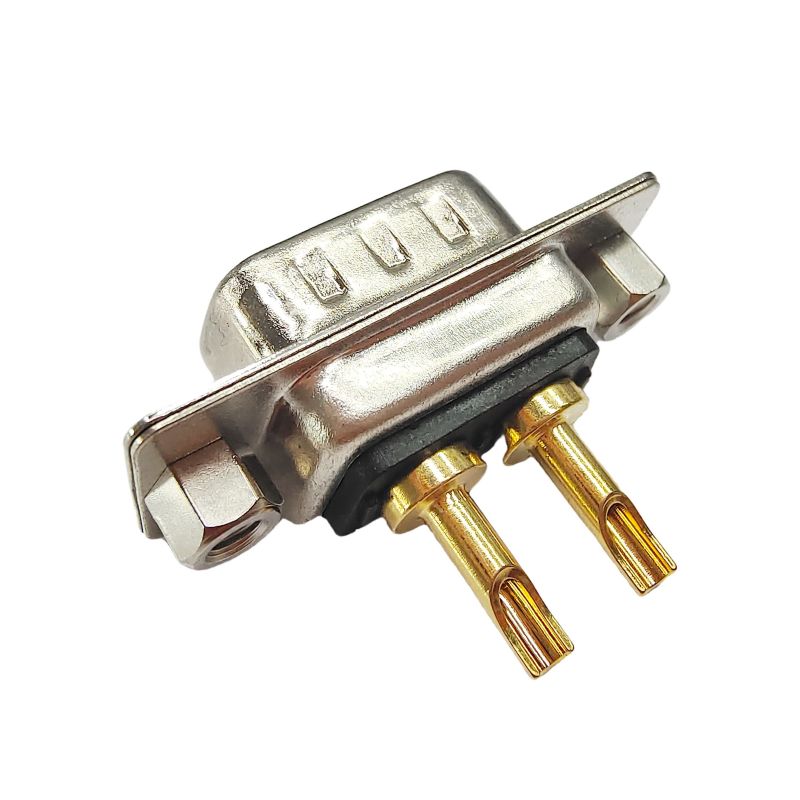

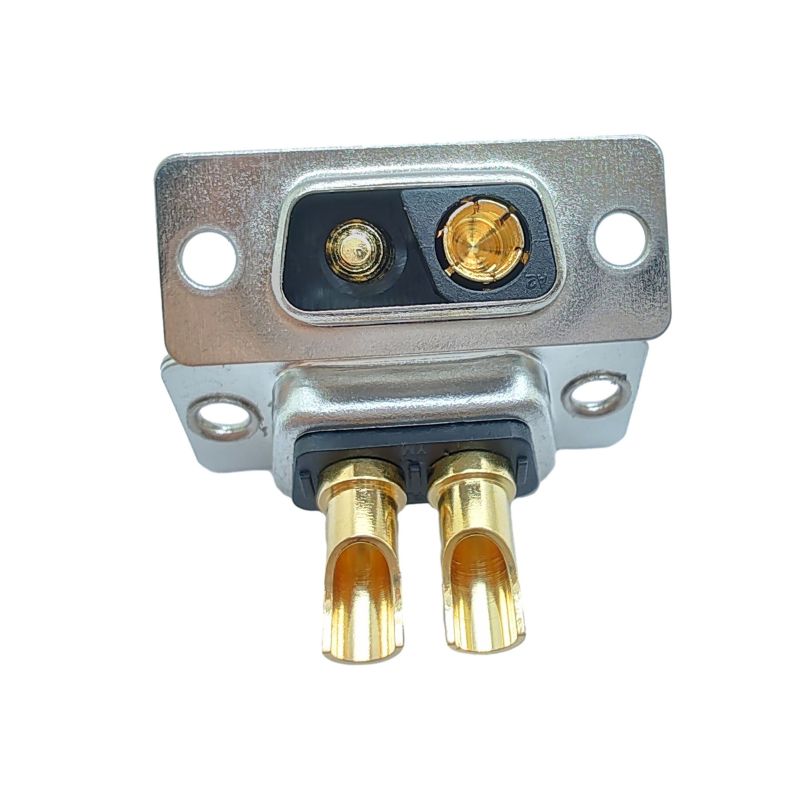

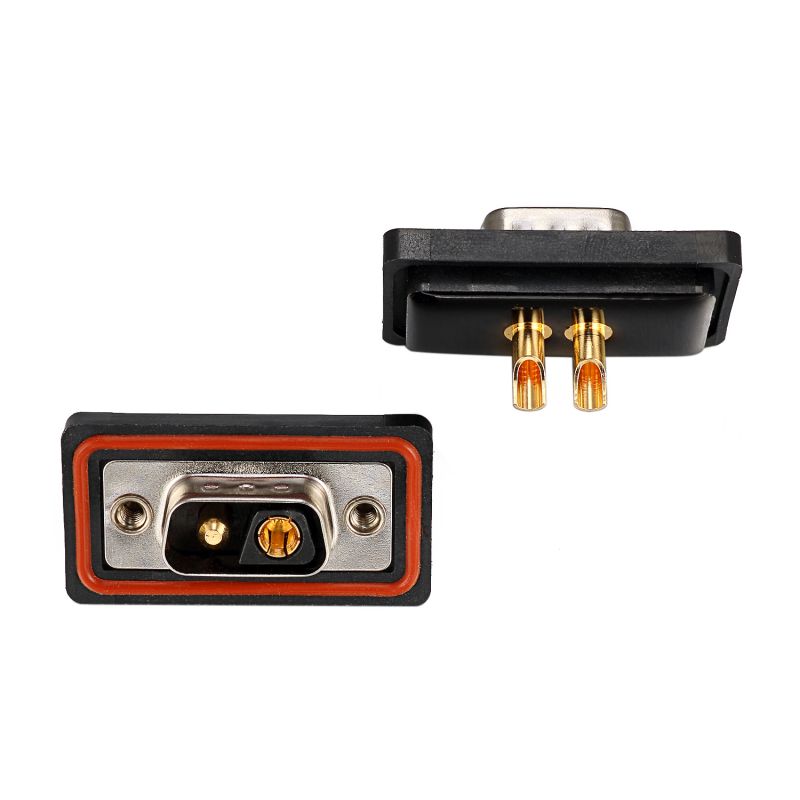

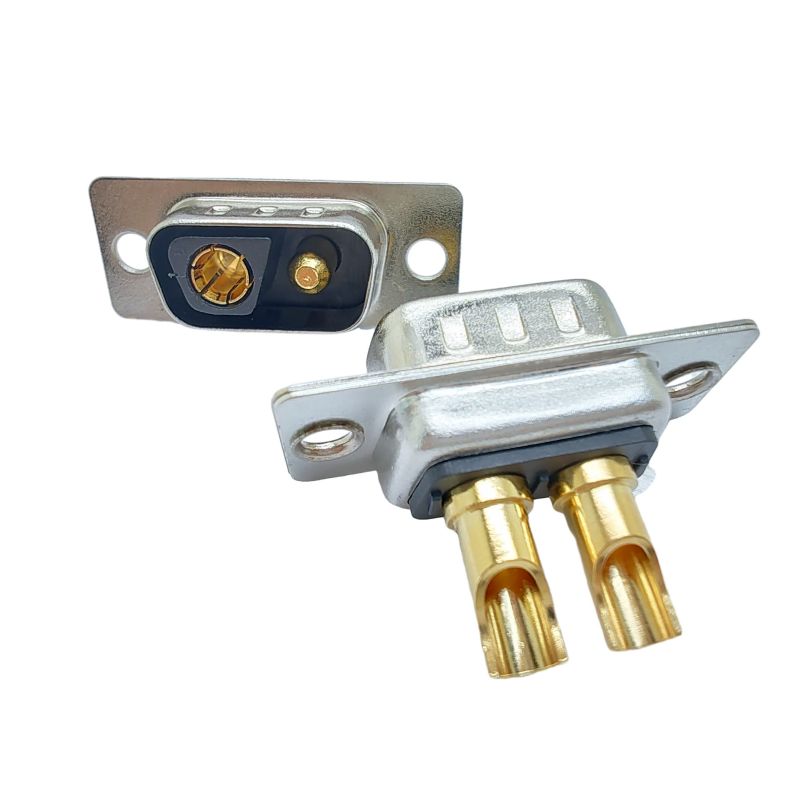

Product pictures of the Combo D-sub 2V2 High Current Connector

High power contacts up to 40 A;

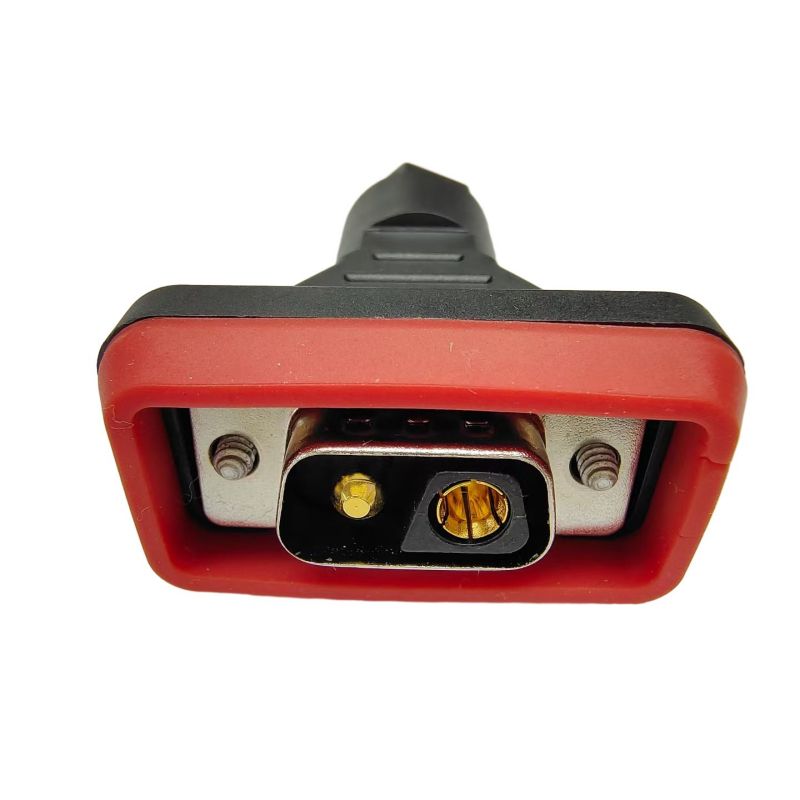

All of these products are protected from dust and liquids to IP67.

Product Details of the Combo D-sub 2V2 High Current Connector

Product quality inspection of the Combo D-sub 2V2 High Current Connector

Deliver,Shipping And Serving of the Combo D-sub 2V2 High Current Connector

FAQ

1) .Can I hot-plug or hot-swap D-sub connectors?

In most cases, D-sub connectors are not designed for hot-plugging or hot-swapping. Hot-plugging refers to the act of connecting or disconnecting a connector while the devices are powered on, while hot-swapping refers to the act of replacing a connector while the system is operational. D-sub connectors are meant to be connected or disconnected when the devices are powered off to ensure proper signal integrity and prevent damage to the devices or the connector itself. However, there may be specific applications or devices that support hot-plugging or hot-swapping with D-sub connectors, so it's important to consult the device's documentation or specifications to determine if it is possible.

2) .Does D-sub support audio?

Yes, D-sub connectors can be used for audio connections in certain applications.

3).What is your warranty?

Our warranty is 12 months after delivery, Signalorigin pays high attention to after-sales service.

3) .How do you mount D sub connectors?

Mount D-Sub connector from inside of panel or enclosure using hex jack screws. Mate connectors and secure backshell thumbscrews to threaded jackscrews. Waterproof IP67 rating is achieved by gaskets / seals in backshell and silicone seal ring in connector.

5) .What is the D-sub connector family?

(D-SUBminiature connectors) A family of plugs and sockets widely used in communications and on earlier PCs.
