D Shaped 50Pin D-Sub Standard Connector

SIGNALORIGIN® is D Shaped 50Pin D-Sub Standard Connector manufacturer. We provide a complete range of quality, time-tested D-sub connectors that have become the standard in the D-Sub industry. Our complete line of D-Subminiature Connectors ranges from Right Angle and DIP Connectors, Solder cup Connectors.

Send Inquiry

Product Description

Product Introduction of the D Shaped 50Pin D-Sub Standard Connector

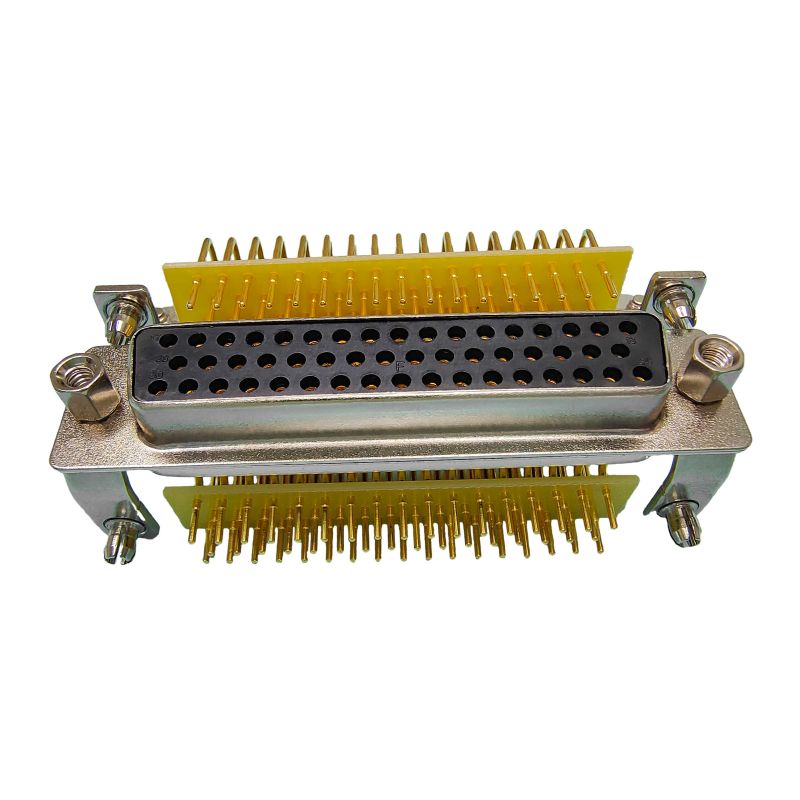

SIGNALORIGIN® is D Shaped 50Pin D-Sub Standard Connector manufacturer and supplier in China who can wholesale D Shaped 50Pin D-Sub Standard Connector. The d sub 50pin connector has 50 pins arranged in three rows, one on top of the other. The top row has 17 pins, the middle row has 16 pins, and the lower row has 17 pins. This connector is typically used in early SCSI applications, such as older Sun Sparcstations

Product Parameter (Specification) of the D Shaped 50Pin D-Sub Standard Connector

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contacts material

Copper  alloy

Contact plating

Goldplated on nickel

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

300V AC

Current rating

5AMP

Contacts OD

∮1.0

Contact resistance

15mΩ Max

Insulation resistance

5000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

1000V AC rms  at 1 minute

Insertion force

50N Max

Extraction force

4.5N Min

Durability

500 cycles

Operating temperature

-55°C~125°C

Product Features of the D Shaped 50Pin D-Sub Standard Connector

High reliability and high density, All contacts are precision machined

Product Details of the High Density D Sub 50 Pin HD Connector

Product Application of the D Shaped 50Pin D-Sub Standard Connector

Robotics & Automation、Machine Manufacturing、Agriculture

Communication、Military、Medical、Transportation、Harsh Environment


Serving of the D Shaped 50Pin D-Sub Standard Connector


WHY CHOOSE US

1).We can offer you the high quality & reasonable price.


2) .We make mainly D-Sub related connectors and parts, and we stay focused on what we do.


3).All the manufacturing process are controlled by Signalorigin


4).We have 16 years of production experience,all material in ROHS,REACH standard.


5) .We offer short delivery times (normally 5-7 days).
