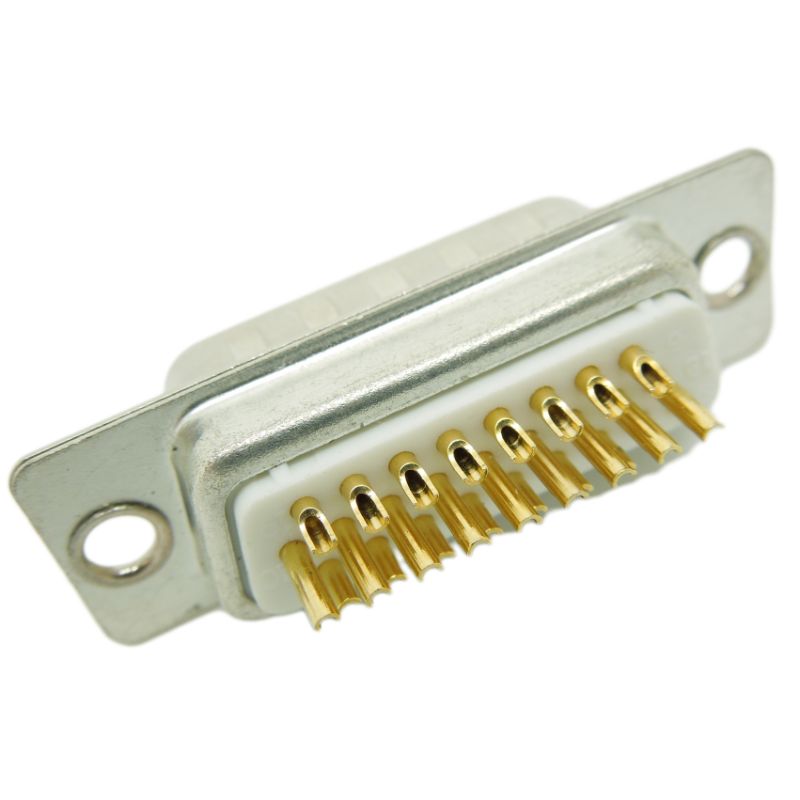

D Shaped High Density D-Sub 26 Pin Connector

SIGNALORIGIN® is a professional leader China D Shaped High Density D-Sub 26 Pin Connector manufacturer with high quality and reasonable price. Our high density connectors available in 15, 26, 44,62and 78 positions, they are a good choice for a low cost industry standard high density connection. SIGNALORIGIN is the D Sub 26 pin connector supplier.

Send Inquiry

Product Description

Product Introduction of the D Shaped High Density D-Sub 26 Pin Connector

Find a huge selection of D Shaped High Density D-Sub 26 Pin Connector from China at SIGNALORIGIN®. D-Sub 26 pin performs excellently in mission critical and data intensive operations, maintains structural integrity under physical stress, and gives reliable long-lasting versatility and functionality to your devices.

Product Parameter (Specification) of the D Shaped High Density D-Sub 26 Pin Connector

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contacts material

Copper  alloy

Contact plating

Goldplated on nickel

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

300V AC

Current rating

3AMP

Contacts OD

∮0.76

Contact resistance

10mΩ Max

Insulation resistance

5000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

750V AC rms  at 1 minute

Insertion force

52N Max

Extraction force

5.2N Min

Durability

500 cycles

Operating temperature

-55°C~125°C

Product Features of the D Shaped High Density D-Sub 26 Pin Connector

We have the most professional design team to serve different innovation products.


Product Details of the D Shaped High Density D-Sub 26 Pin Connector


Product Qualification of the D Shaped High Density D-Sub 26 Pin Connector

Application of the D Shaped High Density D-Sub 26 Pin Connector

WHY CHOOSE US

1) .16 Years of Experience


2) .Free Sample on Request


3) .Lead time in 7-10 days


4) .Prompt Response in 1 hour


5) .Personal and friendly customer service
