HD 15PIN IP67 D Sub Female Connector

China HD D Sub 15 connector supplier that meets the quality standards of Europe and the United States, SIGNALORIGIN®, is an excellent company focusing on high quality D-Sub connectors, with 16 years of experience in the industry, producing more than 2 million pieces of finished products per month, with a pass rate of up to 99.9%.

Send Inquiry

Product Description

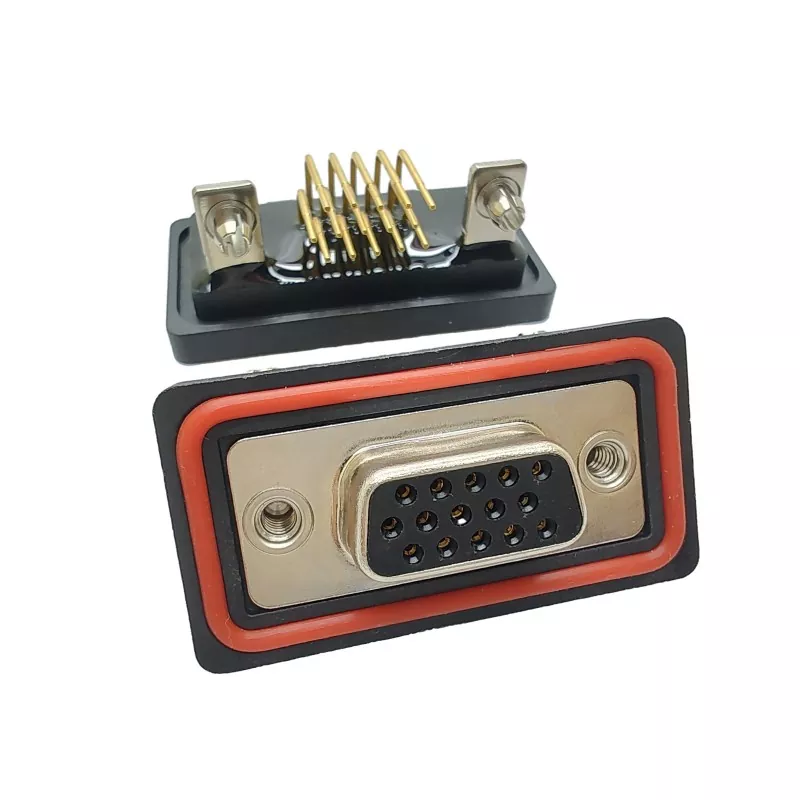

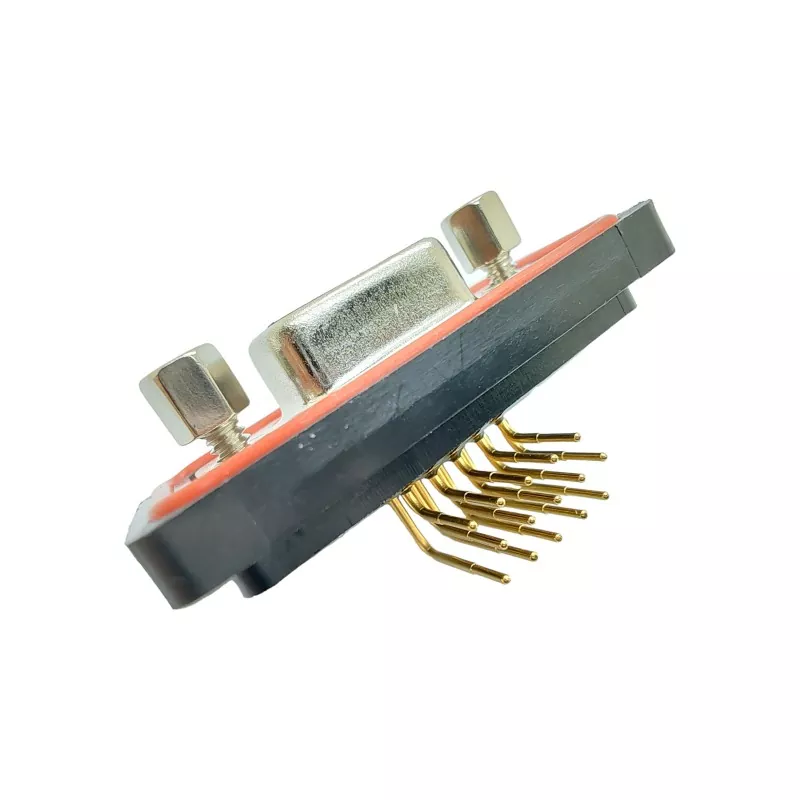

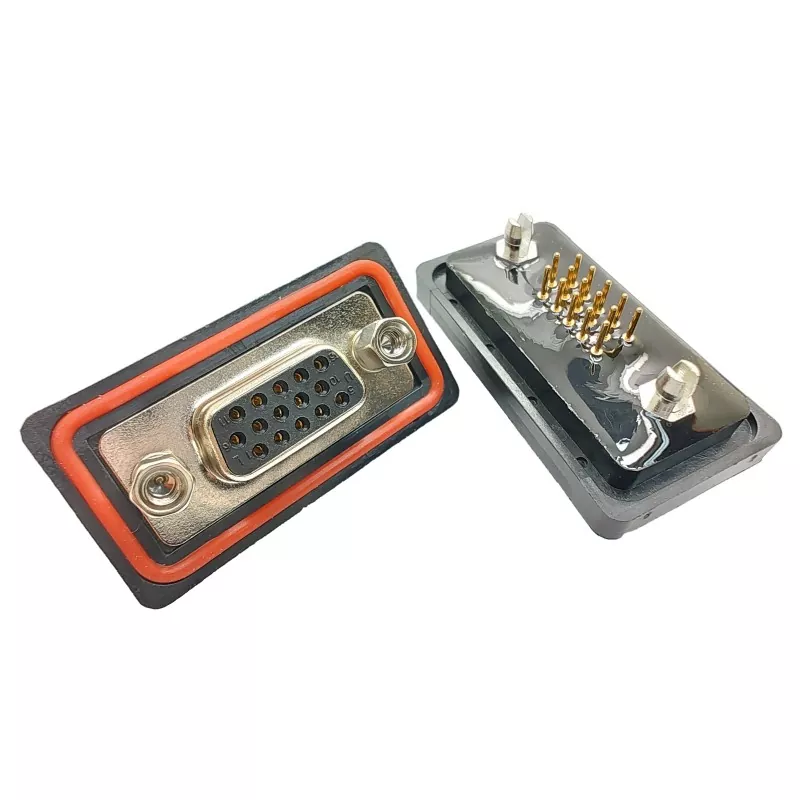

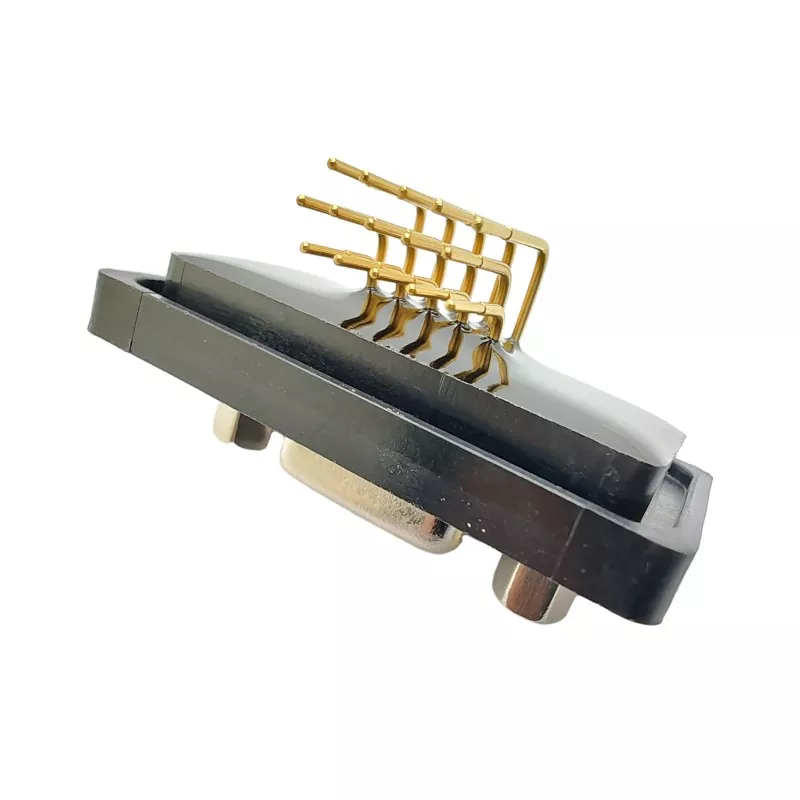

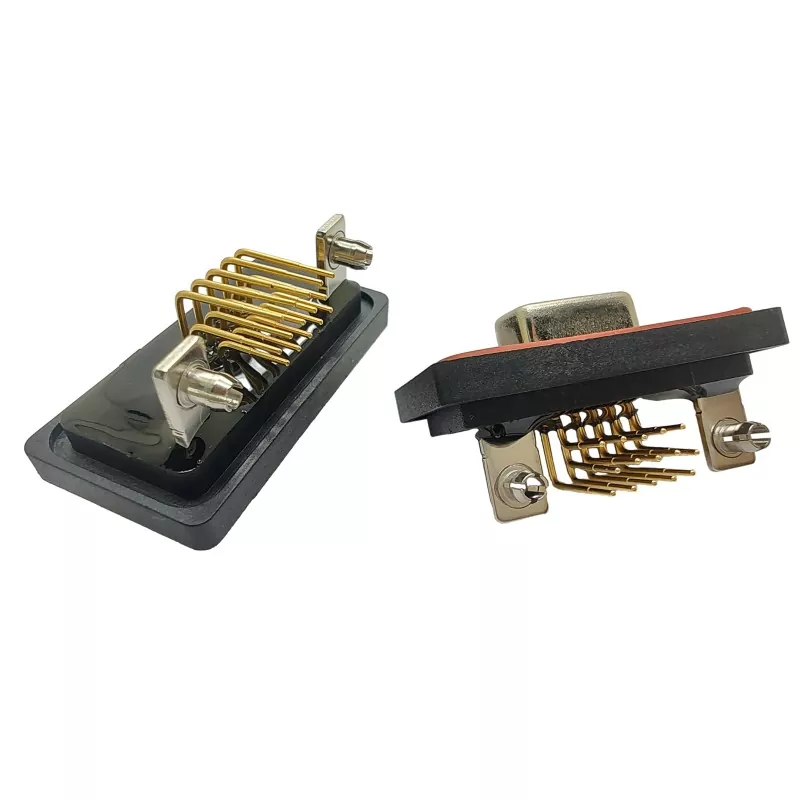

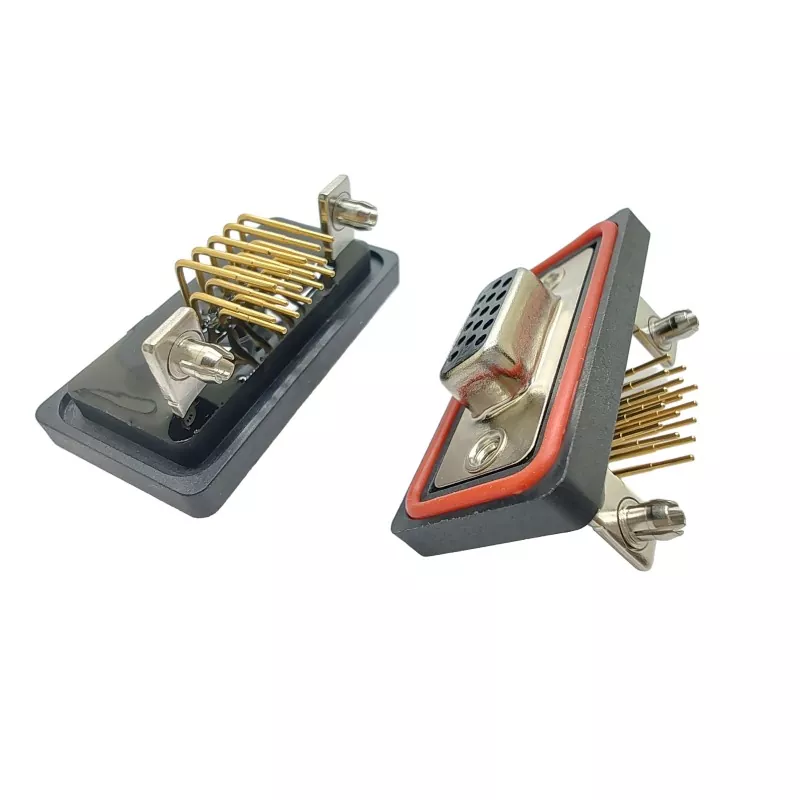

Product Introduction of the HD 15PIN IP67 D Sub Female Connector

Our connectors have multiple pins for you to choose from, such as 9 PIN, 15 PIN, 25 PIN, 37 PIN and so on. The HD D Sub 15 connector is an abbreviated form high-density d sub 15 connector. There are male and female connectors, and three types: Solder cup type , straight type , and right angle type.


The HD d sub 15connector (DE-15 connector) has the same housing dimensions as the DE-9 connector. Later analogue video (VGA and higher) adapters often replaced the DE-9 connector with a DE-15 high-density socket (although some early VGA devices still used the DE-9 connector.) The additional pins on the DE-15 VGA connector were used to add the increasingly sophisticated display-sensing Plug and Play feature.

Product Parameter (Specification) of the HD 15PIN IP67 D Sub Female Connector

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contacts material

Copper  alloy

Contact plating

Gold plated on nickel

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

300V AC

Current rating

3AMP

Contacts OD

∮0.76

Contact resistance

10mΩ Max

Insulation resistance

5000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

750V AC rms  at 1 minute

Insertion force

30N Max

Extraction force

3.0N Min

Durability

500 cycles

Operating temperature

-55°C ~125°C

Product Feature of the HD 15PIN IP67 D Sub Female Connector

Our D-Sub connectors suitable for different business fields such as New Energy, Transportation, IT, Automobile, and so on.

Product Details of the HD 15PIN IP67 D Sub Female Connector

Serving of the HD 15PIN IP67 D Sub Female Connector

Series of products of the HD 15PIN IP67 D Sub Female Connector

FAQ

1) .Do you operate a Quality Management System?

Yes, we have ls09001:2018 certification.


2) .What is the difference between a standard D-sub connector and a high-density (HD) D-sub connector?

The primary difference between a standard D-sub connector and a high-density (HD) D-sub connector is the pin density. HD D-sub connectors have a higher pin density, meaning they can accommodate more pins in the same-sized connector shell compared to standard D-sub connectors. This allows for more compact designs and increased functionality in devices where space is limited. HD D-sub connectors often have additional rows of pins or sockets, providing more options for signal transmission.


3).Which D-sub connector is commonly used for serial connections?

The most common types are DB-9, DB-15, DB-25, and HD-15 connectors.


3) .How do you mount D sub connectors?

Mount D-Sub connector from inside of panel or enclosure using hex jack screws . Mate connectors and secure backshell thumbscrews to threaded jackscrews. Waterproof IP67 rating is achieved by gaskets / seals in backshell and silicone seal ring in connector.


5) .What is the function of a connector?

Connectors are parts or devices used for electrically connecting or disconnecting circuits etc. They can connect and disconnect by hands or with simple tools without requiring special tools or processes such as soldering.
