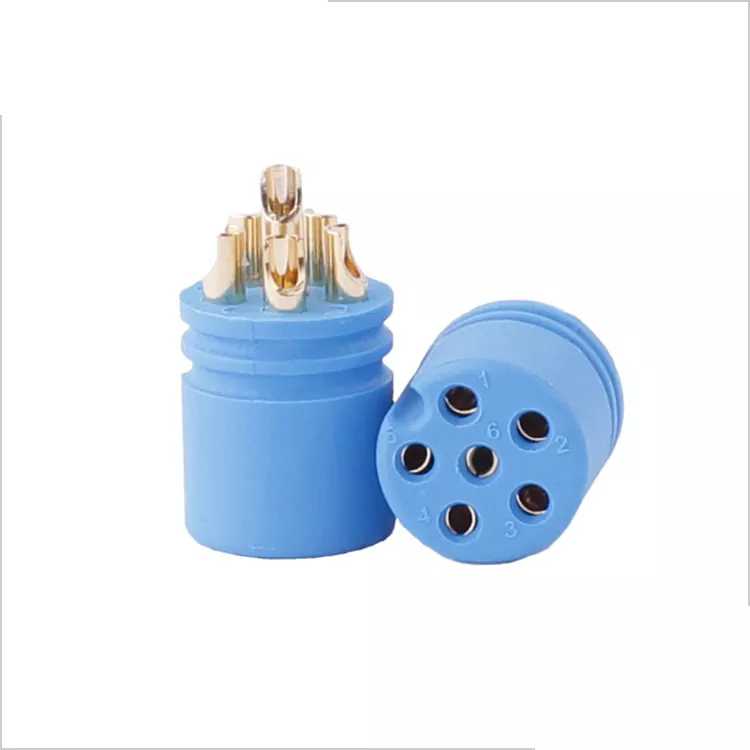

M8 Circular 6Pin Connector Female

M8 circular connectors are compact, stable and reliable connection, adapting to equipment with space constraints, and the product with anti-vibration stop design after installation or docking.

Send Inquiry

Product Description

Product Introduction of the M8 Circular 6Pin Connector Female

Mainly used in the industrial world, M8 circular connectors are cylindrical multi-pin electronic connectors with a circular plug face that are used for intermating connections between devices. Circular connectors contain contacts for transmitting data and power, and typically include low-frequency circular connectors, RF coaxial connectors, and audio connectors.

When you choose SIGNALORIGIN® M8 Circular Connectors, you get a reliable industrial automation solution that brings more efficiency, lower failure rates, and longer life to your production line. Contact us for more information and customized solutions.

Product Parameter (Specification) of the M8 Circular 6Pin  Connector Female

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contact plating

Gold plated

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

120V AC

Current rating

5AMP

Contact resistance

30mΩ Max

Insulation resistance

1000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

750V AC rms  at 1 minute

Durability

500 cycles

Operating temperature

-40°C ~125°C

Product Feature of the M8 Circular 6Pin  Connector Female

Certificated ROHS plating available.

A variety of terminal structure to meet the different needs of customers.

Product Details of the M8 Circular 6Pin  Connector Female

Application of the M8 Circular 6Pin  Connector Female


Robotics & Automation、Machine Manufacturing、Agriculture

Communication、Military、Medical、Transportation、Harsh Environment


Image of SIGNALORIGIN®

FAQ

1) .How many amps is a D-sub connector?

Standard: Standard Density D-Sub connectors are available in pin counts from 9 - 50, with typical current capacities of 5 amps per contact - enough to drive active displays, sensors, actuators and single board computers.


2) .Are M12 connectors waterproof?

The M12 connecting interface features waterproof protection (IP65 / IP68 / IP69K), cross-manufacturer compatibility (IEC 61076-2), and multipurpose applications (Signal, Power, Network).


3) .What is the D-sub connector family?

(D-SUBminiature connectors) A family of plugs and sockets widely used in communications and on earlier PCs. For example, the analog VGA monitor interface uses a D-sub 15-pin plug and socket. Also called "DB connectors" and "D-subs," they come in 9, 15, 25, 37 and 50 pin varieties.


4) .What is the function of a connector?

Connectors are parts or devices used for electrically connecting or disconnecting circuits etc. They can connect and disconnect by hands or with simple tools without requiring special tools or processes such as soldering.


5) .What's your delivery time?

Our normal delivery time is 5-35 days. If it is urgent, we will deal with it urgently.
