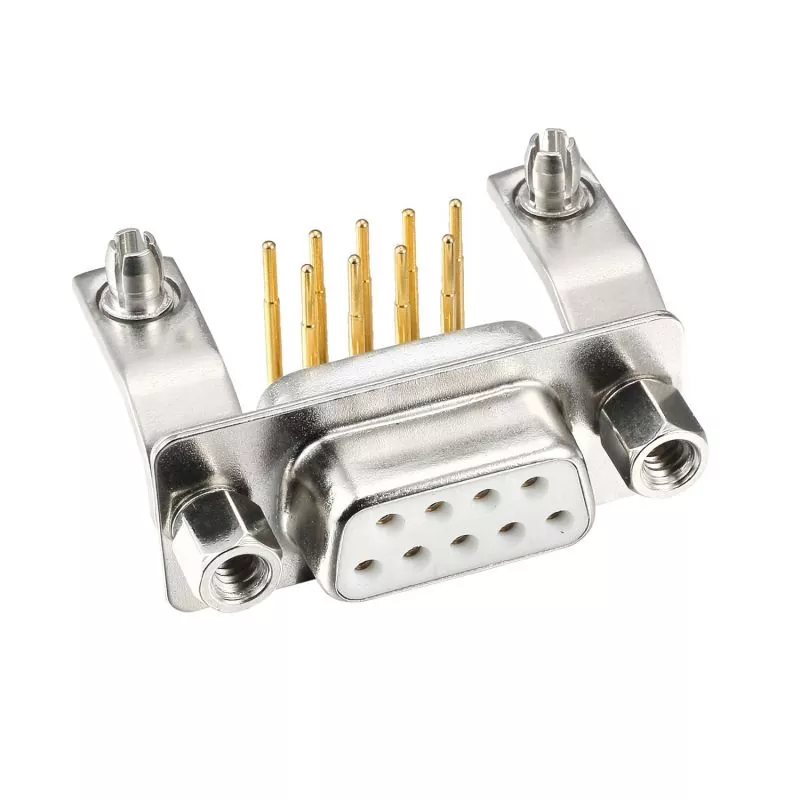

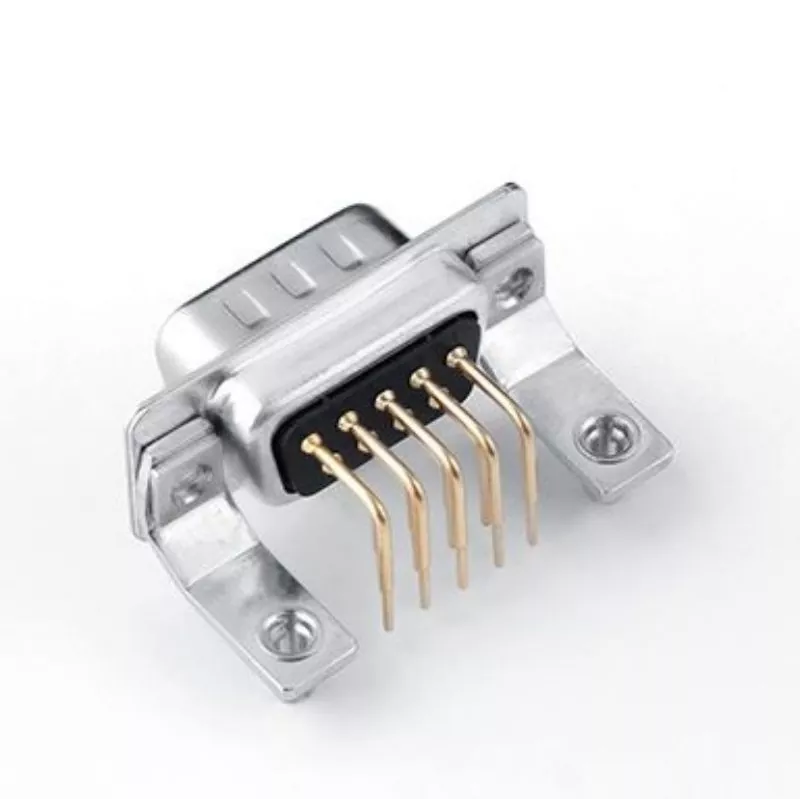

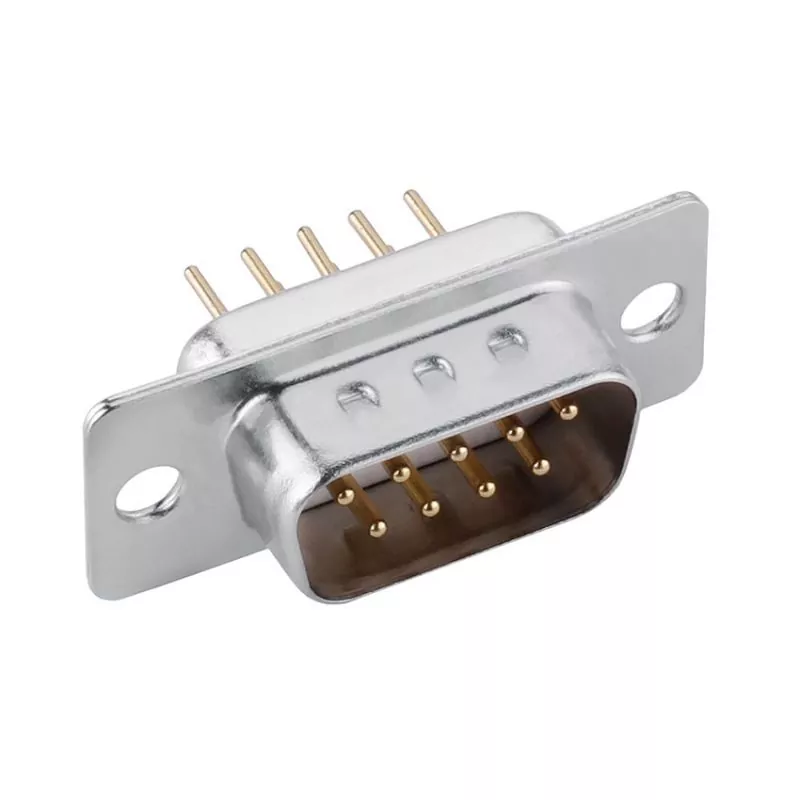

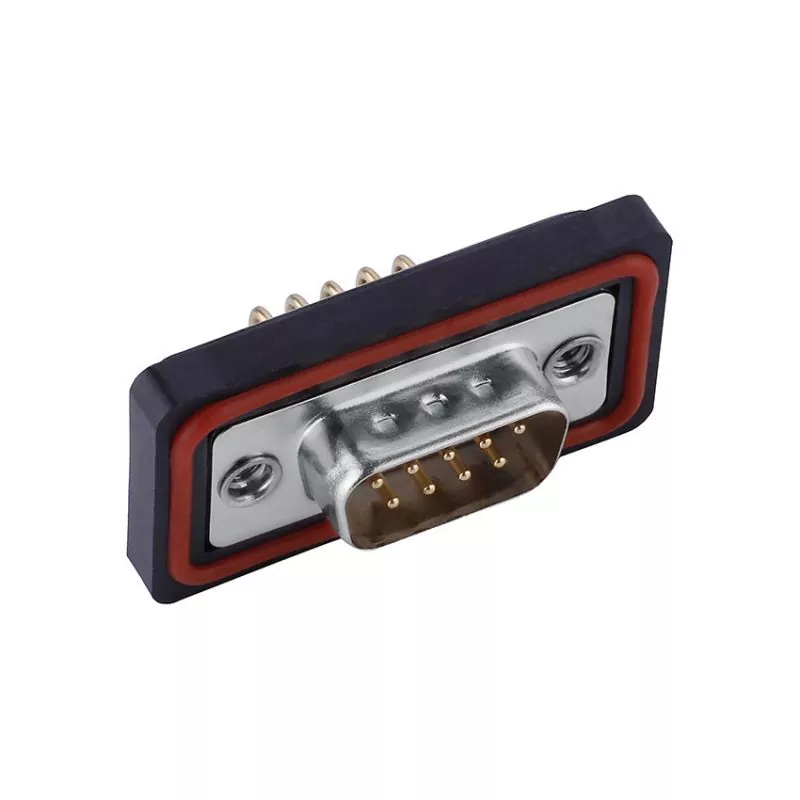

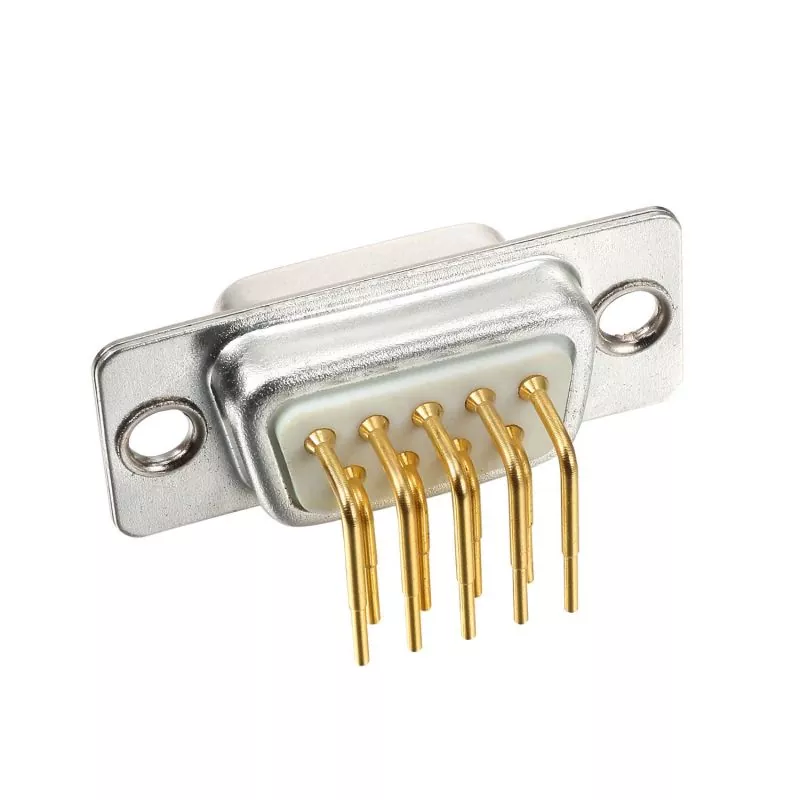

D-Sub 9 Pin Standard DE9 Connector

SIGNALORIGIN® is a professional leader China D-Sub 9 Pin Standard DE9 Connector manufacturer with high quality and reasonable price. The D-subminiature or D-sub is a common type of electrical connector. They are named for their characteristic D-shaped metal shield. When they were introduced, D-subs were among the smallest connectors used on computer systems. D-sub 9 pin connectors were used for some Token Ring networks as well as other computer networks.In vehicles, DE-9 connectors are commonly used in Controller Area Networks (CAN): female connectors are on the bus while male connectors are on devices.

Send Inquiry

Product Description

Product Introduction of the D-Sub 9 Pin Standard DE9 Connector

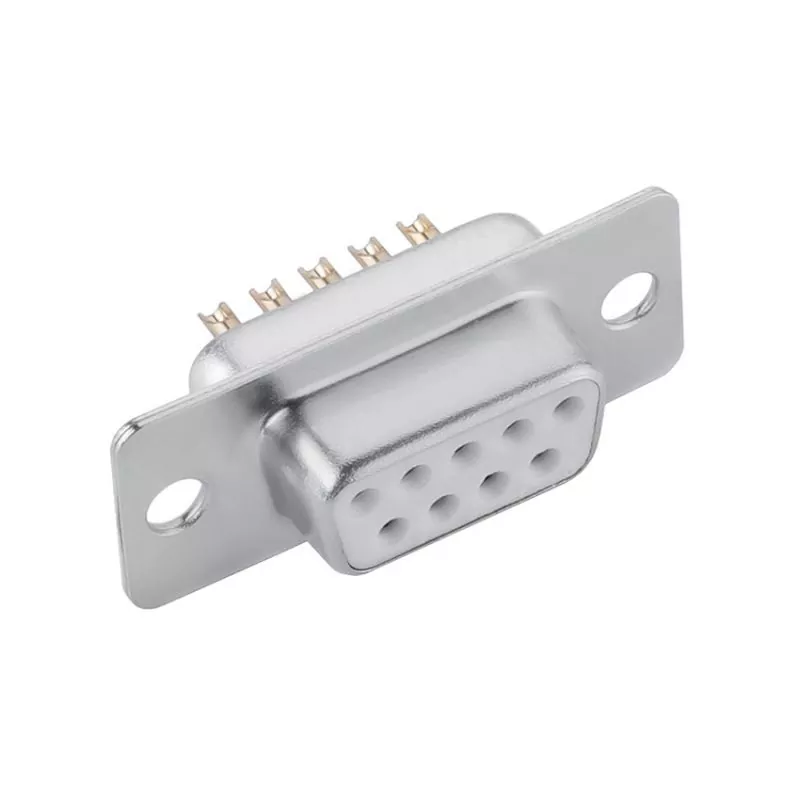

High quality D-Sub 9 Pin Standard DE9 Connector is offered by China manufacturer SIGNALORIGIN®. 9 pin D-sub female connector solder cup type is made from copper alloy with gold plated. SIGNALORIGIN specialize in D-SUB connector in many years. Our D-sub range consists of both male and female connectors in various terminations such as solder buckets, straight and right angled solder pins with 9, 15, 25 and 37 contact versions.

Product Parameter (Specification) of the D-Sub 9 Pin Standard DE9 Connector

Material	Insulator material	PBT+30% G.F (UL94V-O)
	Insulator color	Black/Blue (can be customized)
	Contacts material	Copper alloy
	Contact plating	Gold plated on nickel
	Shell material	Steel/SPCC-SD, nickel or tin plated
Electrical	Dielectric rating	300V AC
	Current rating	5AMP
	Contacts OD	∮1.0
	Contact resistance	15mΩ Max
	Insulation resistance	5000MΩ Min at 500V DC
Mechanical	Dielectric withstanding voltage	1000V AC rms at 1 minute
	Insertion force	30N Max
	Extraction force	3.3N Min
	Durability	500 cycles
	Operating temperature	-55°C～125°C
