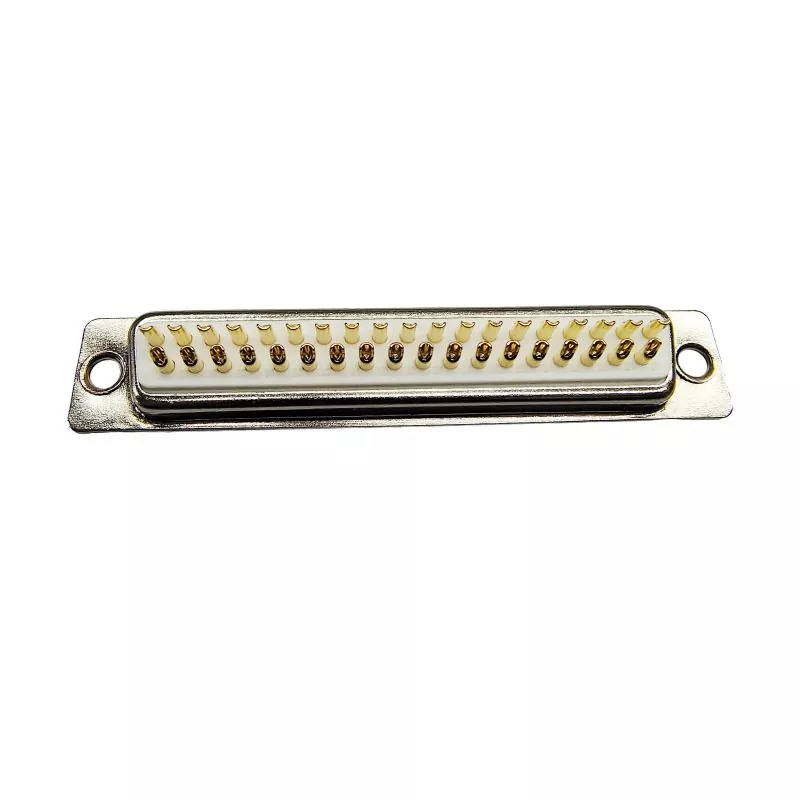

D Type Connector 37 Pin Standard D-Sub

D Type Connector 37 Pin Standard D-Sub

SIGNALORIGIN® is the D Type Connector 37 Pin Standard D-Sub manufacturer in China.
D-Sub Part Numbers
The first letter is D to indicate a D-Subminiature connector.
The second letter indicates the physical shell size - A, B, C, D, E. The smallest is E, followed by A, B, C, D in size order The next numbers indicate the number of contacts.
Sometimes a suffix added to indicate gender, M=male, F=female, or P=plug(male), S=socket(female).

Send Inquiry

Product Description

Product Introduction of the D Type Connector 37 Pin Standard D-Sub

Find a huge selection of D Type Connector 37 Pin Standard D-Sub from China at SIGNALORIGIN®. DC-37 pin d sub connectors are commonly used in hospital facilities as an interface between hospital beds and nurse call systems, allowing for the connection and signaling of Nurse Call, Bed Exit, and Cord out including TV entertainment and lighting controls.

Product Parameter (Specification) of the D Type Connector 37 Pin Standard D-Sub

Material	Insulator material	PBT+30% G.F (UL94V-O)
	Insulator color	Black/Blue (can be customized)
	Contacts material	Copper alloy
	Contact plating	Goldplated on nickel
	Shell material	Steel/SPCC-SD, nickel or tin plated
Electrical	Dielectric rating	300V AC
	Current rating	5AMP
	Contacts OD	∮1.0
	Contact resistance	15mΩ Max
	Insulation resistance	5000MΩ Min at 500V DC
Mechanical	Dielectric withstanding voltage	1000V AC rms at 1 minute
	Insertion force	50N Max
	Extraction force	4.5N Min
	Durability	500 cycles
	Operating temperature	-55°C～125°C

Product features of the D Type Connector 37 Pin Standard D-Sub

certified raw-material and stable vendor to ensure the quality of product to meet your strict quality needs.

Product Details of the D Type Connector 37 Pin Standard D-Sub

Product equipment of the D Type Connector 37 Pin Standard D-Sub

Deliver,Shipping And Serving of the D Type Connector 37 Pin Standard D-Sub

FAQ

1).What's your after-sale service?

We can provide you with technical support. If you have any problems, we can solve them for you at the first time

2) .What's your price?

Our price is factory direct selling price and can be negotiated.

3).What is the Minimum Order Quantity(MOQ)?

Normally our MOQ is 100pcs. Small order is also available.

4).How we can trust your quality?

We have 16 years of production experience,all material in ROHS, REACH standard,100% test before delivery.

5) .What's your delivery time?

5-7 working days for samples, 20-35 working days for bulk order.
