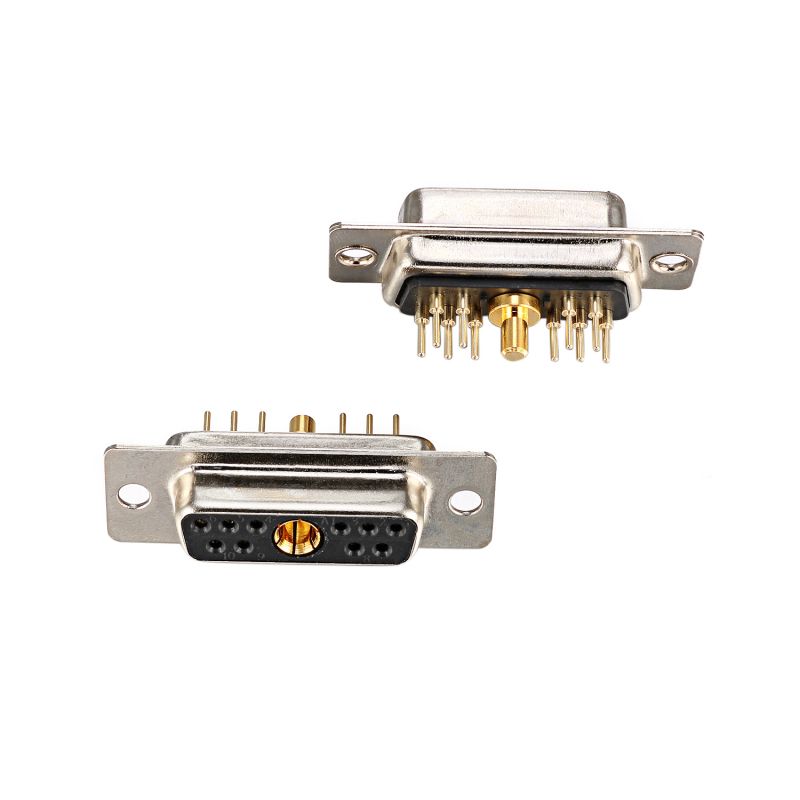

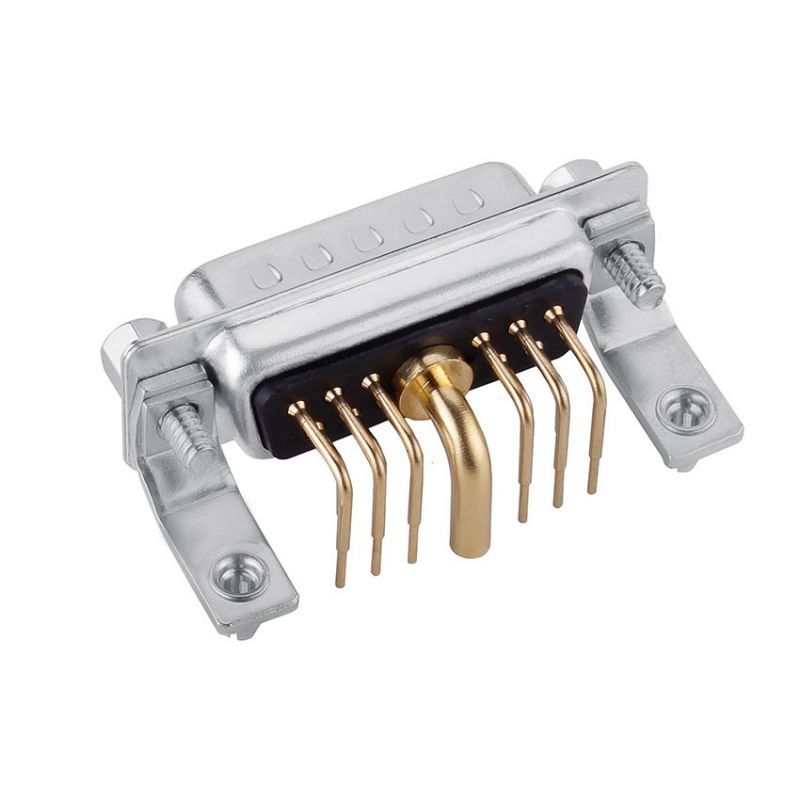

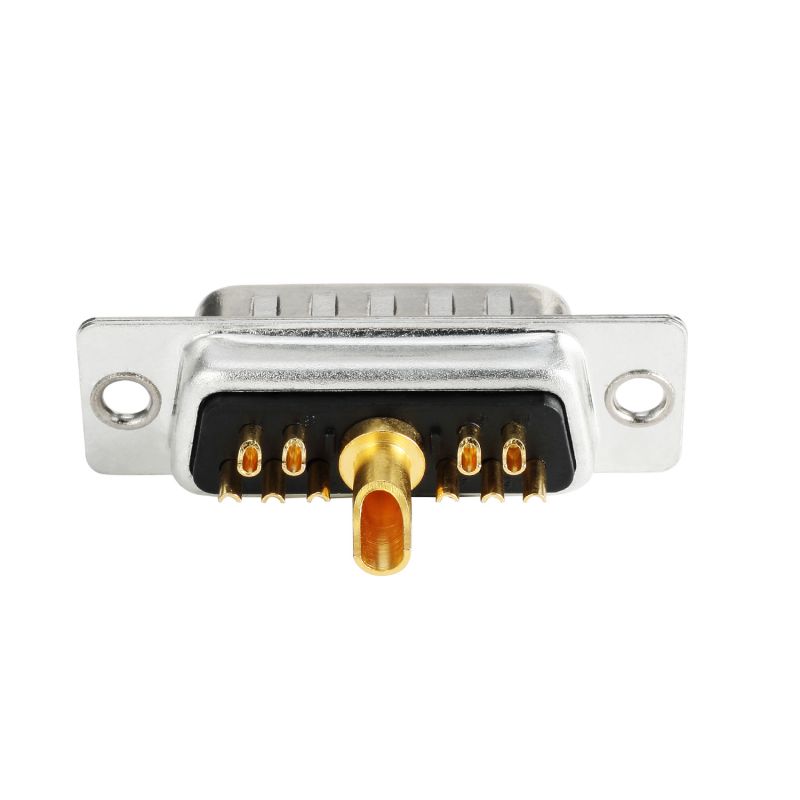

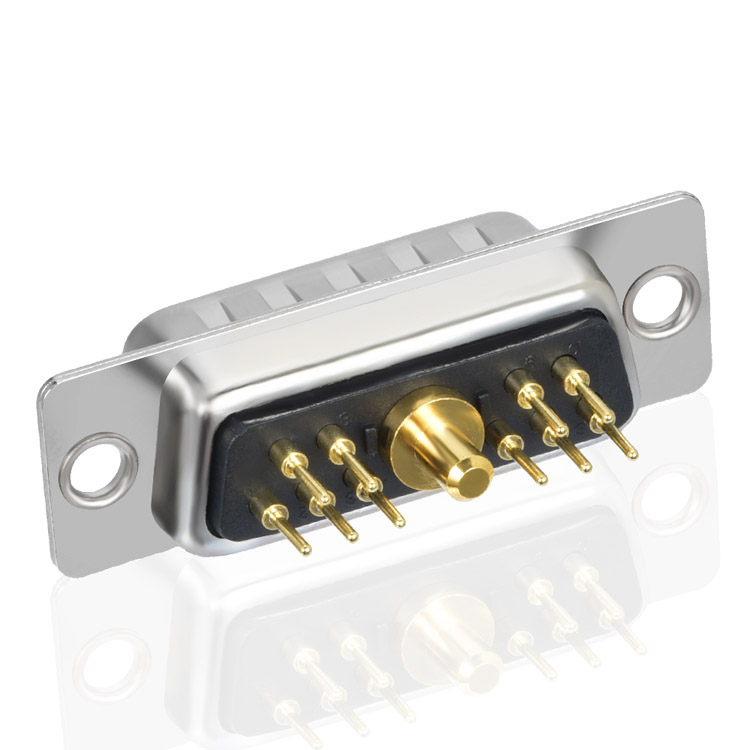

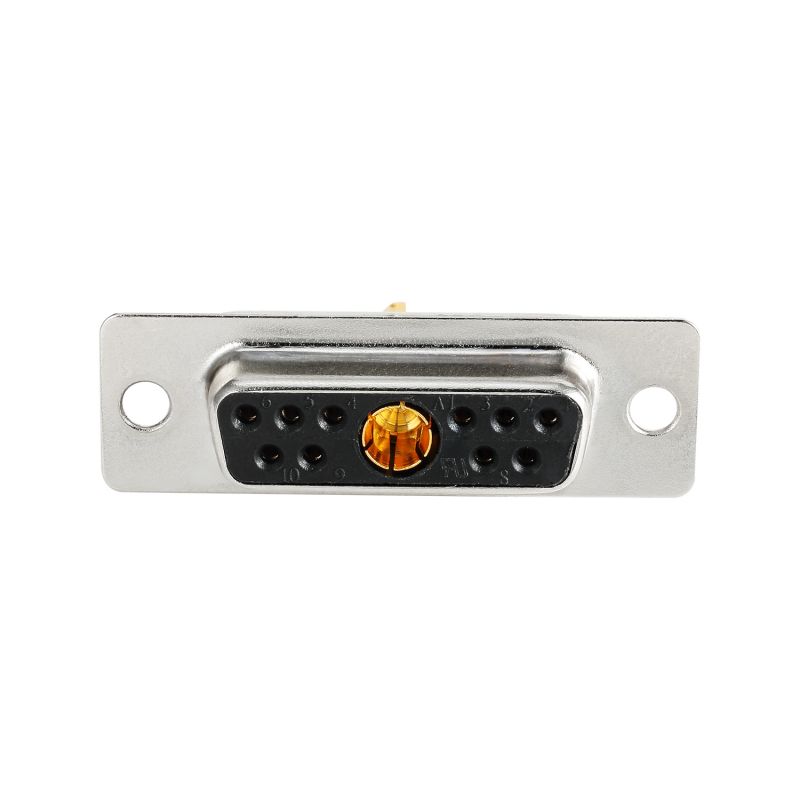

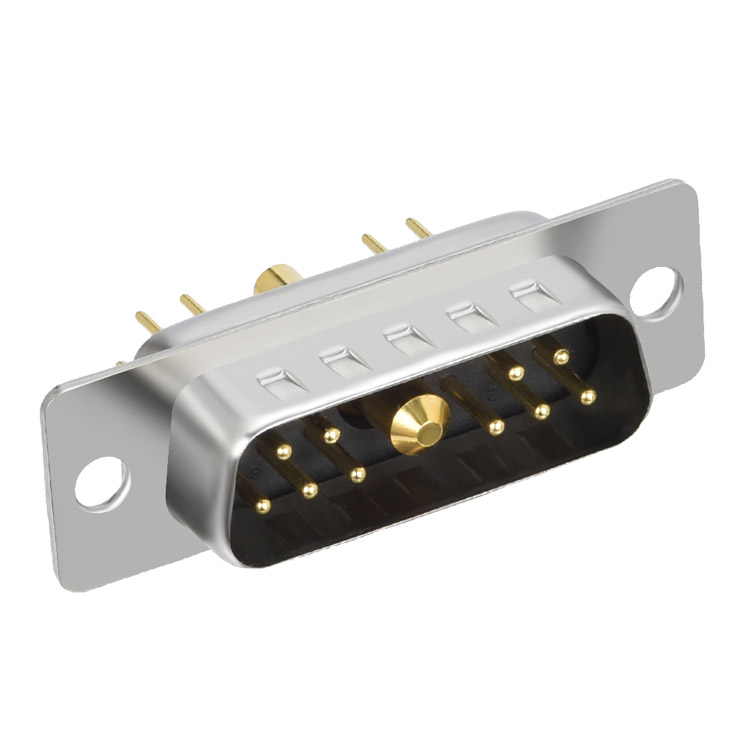

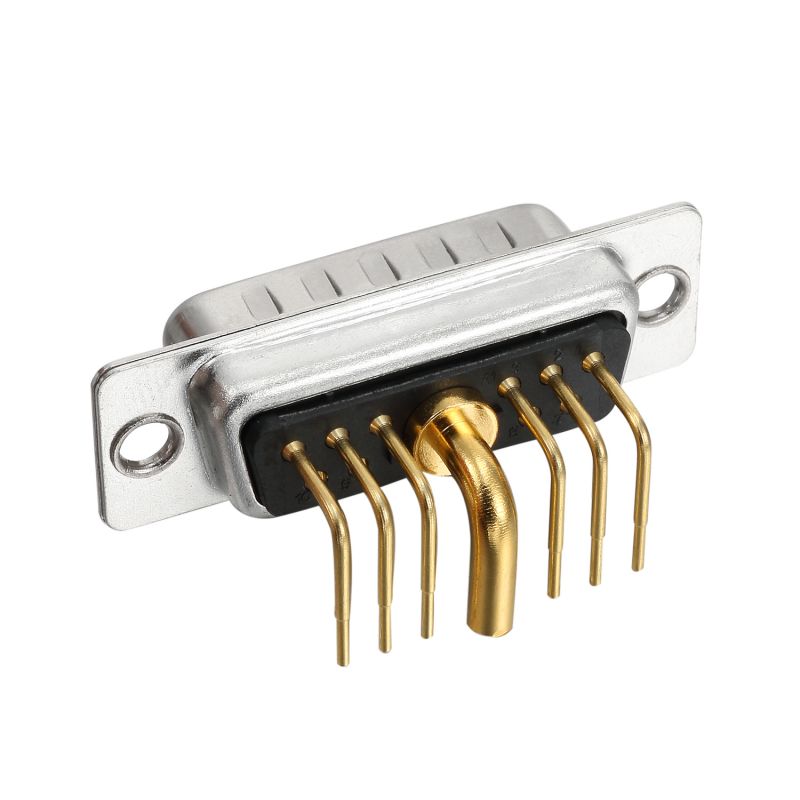

Combo D-Sub 11W1 High Current Connector

As the professional manufacturer, SIGNALORIGIN® would like to provide you Combo D-Sub 11W1 High Current Connector. D SUB Connector Cable Mount d sub 11w1 for Cable, Compatible with Industrial Equipment Computer Peripherals or Specialized Electronic Devices. The connector is designed to be soldered onto a cable, providing a secure and reliable connection.

Send Inquiry

Product Description

Product Introduction of the Combo-D sub 11W1 High Current Connector

Find a huge selection of Combo D-Sub 11W1 High Current Connector from China at SIGNALORIGIN®. 11w1 D-sub connector, machined contacts offer advantages with regard to current carrying capacity, contact variety, suitable plating, and an increased mechanical strength. And the power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different. The high performance D-sub connector work with a wide variety of electronics.

Product Parameter (Specification) of the Combo-D sub 11W1 High Current Connector

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contacts material

Copper  alloy

Contact plating

Goldplated ,1U”~30U"

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

300V AC

High power contacts current rating

10A-40A(customized)

Contact resistance

2.7mΩ Max

Insulation resistance

2000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

1000V AC rms  at 1 minute

Insertion force

¢1.0 :3.4 N /Pin(MAX)

¢3.6:12 N /Pin(MAX)

Extraction force

¢1.0:0.3N /Pin MIN

¢3.6:2 N /Pin MIN

Durability

500 cycles

Operating temperature

-55°C~125°C

Product Feature of the Combo D-sub 11W1 High Current Connector


15 years of industry production experience.

Safety UL certification and ISO 9001 Quality standard.


Product Details of the Combo D-sub 11W1 High Current Connector

Product storage of the Combo D-sub 11W1 High Current Connector

Deliver,Shipping And Serving of the Combo D-sub 11W1 High Current Connector

FAQ

1) .What should l do if there are any defective products at the receiving end?

If this happens, please contact us as soon as soon as possible.


2) .What's your price?

Our price is factory direct selling price and can be negotiated.


3) .What does a D-Sub Connector look like?

They are shaped like the letter “D,” with one side slightly longer than the other. Due to the shape, there is only one way to connect a device.


4) .Do you have them is stock?

Contact with Customer Service..


5) .How about your production capacity?

Fully automatic production can meet your requirements.


Hot Tags: Combo D-Sub 11W1 High Current Connector, China, Manufacturer, Supplier, Factory
