High Current D-Sub 3W3 Combination Connector
High Current D-Sub 3W3 Combination Connector
High Current D-Sub 3W3 Combination Connector supplier. 3-position Signalorigin® D-sub Connector offers the familiar shape and functionality of a combination D-Subminiature connector with high current, high performance contact technology. This series connectors utilize the same front shells, rear shells and mounting features found on standard D-sub connectors, which means they are fully interchangeable on a PCB, panel or cable assembly.
Send Inquiry
Product Description
Product Introduction of the High current D-Sub 3W3 Combination Connector
SIGNALORIGIN® is the High Current D-Sub 3W3 Combination Connector manufacturer in China. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.
Product Parameter (Specification) of the High Current D-Sub 3W3 Combination Connector
|
Material |
Insulator material |
PBT+30% G.F (UL94V-O) |
|
Insulator color |
Black/Blue (can be customized) |
|
|
Contacts material |
Copper alloy |
|
|
Contact plating |
Goldplated ,1U”~30U" |
|
|
Shell material |
Steel/SPCC-SD, nickel or tin plated |
|
|
Electrical |
Dielectric rating |
300V AC |
|
High power contacts current rating |
10A-40A(customized) |
|
|
Contact resistance |
2.7mΩ Max |
|
|
Insulation resistance |
2000MΩ Min at 500V DC |
|
|
Mechanical |
Dielectric withstanding voltage |
1000V AC rms at 1 minute |
|
Insertion force |
￠1.0 :3.4 N /Pin（MAX) ￠3.6:12 N /Pin（MAX) |
|
|
Extraction force |
￠1.0:0.3N /Pin MIN ￠3.6:2 N /Pin MIN |
|
|
Durability |
500 cycles |
|
|
Operating temperature |
-55°C～125°C |
Product Feature And Application of the High Current D-Sub 3W3 Combination Connector
Monthly output of finished products more than 2 million pieces, 99.9% qualification rate.

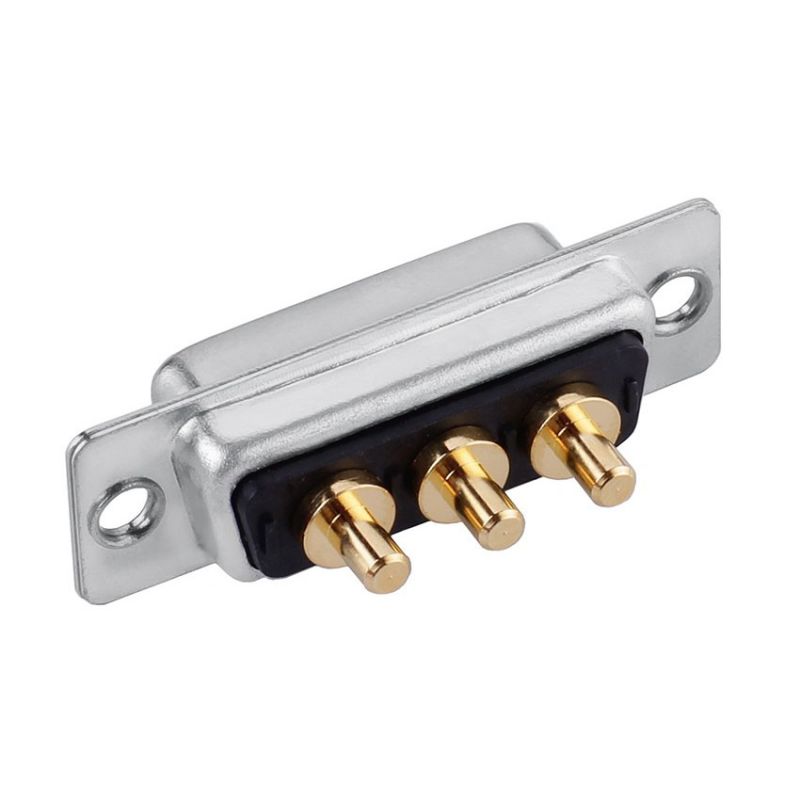

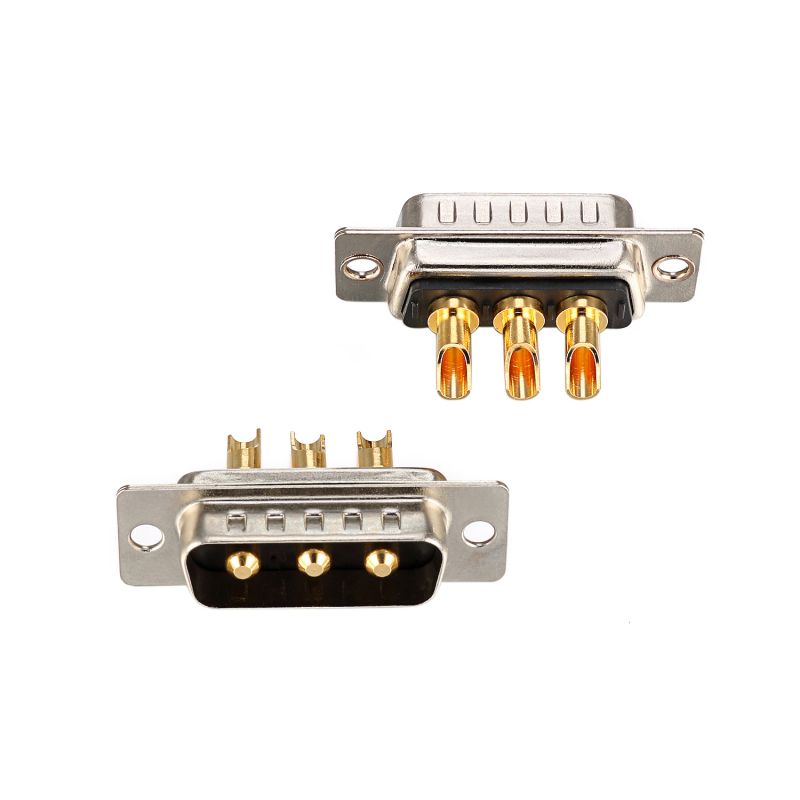

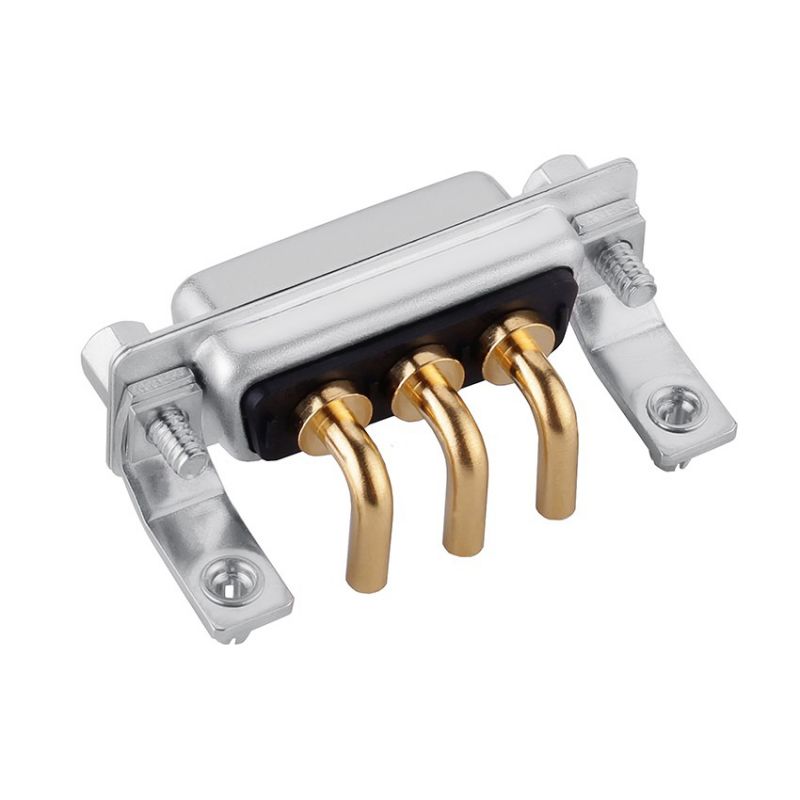

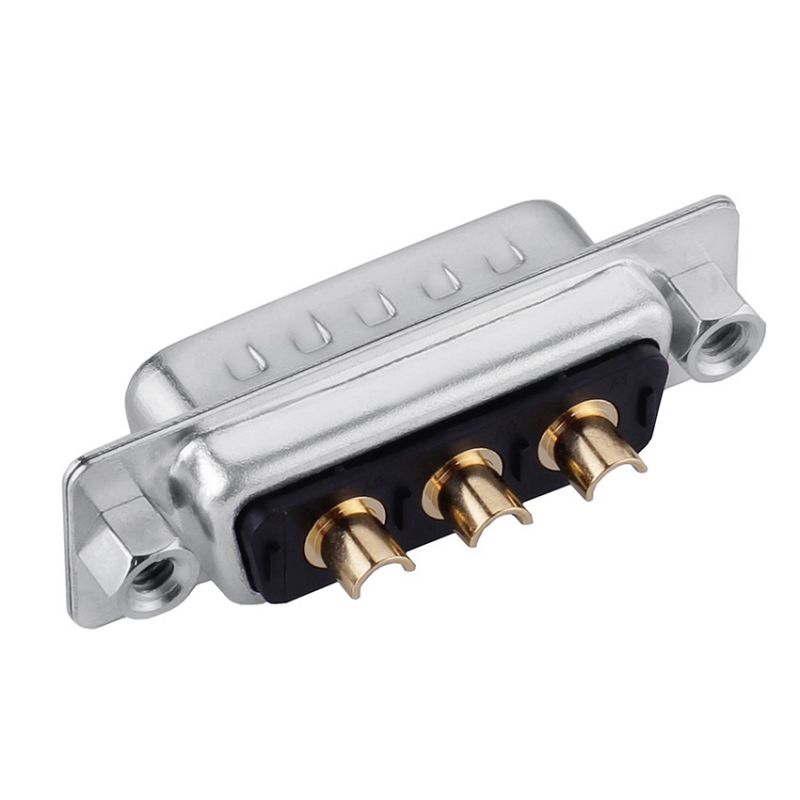

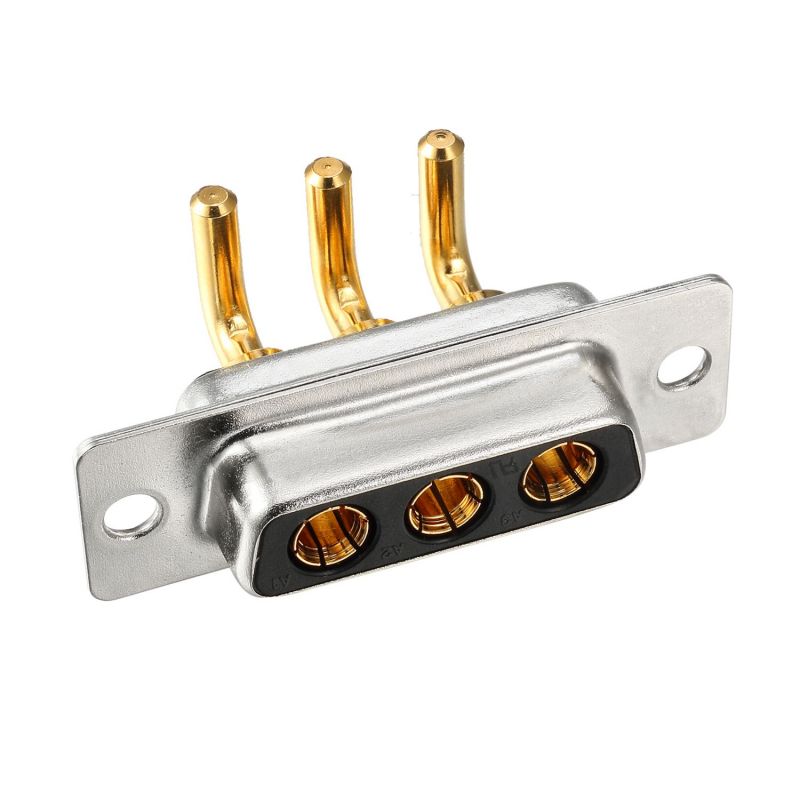

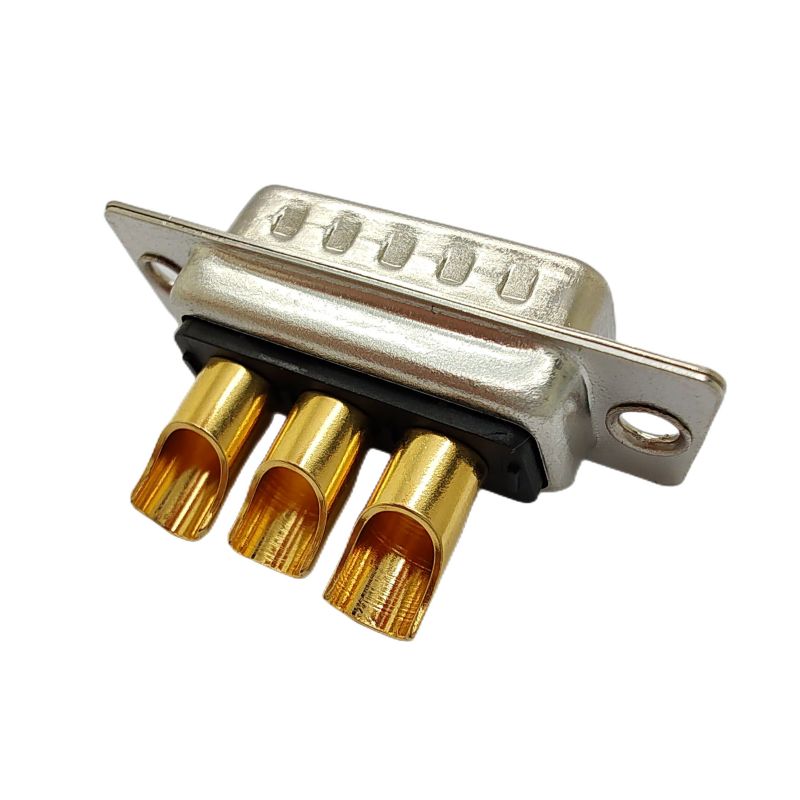

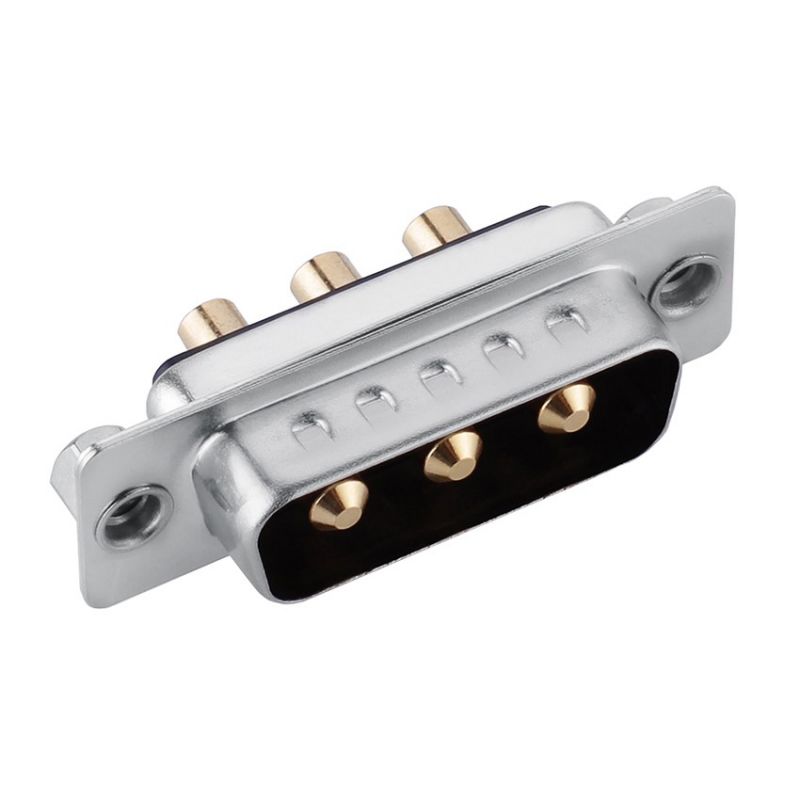

Product Details of the High Current D-Sub 3W3 Combination Connector
Customized processes of the High Current D-Sub 3W3 Combination Connector
Hot recommend
FAQ
1) .What's the warranty?
One year, 12 months.
2) .How will you deliver goods to me?
DHL, UPS....Please contact us.
3) .Can l visit you?
Sure, welcome to you visit our factory at anytime.
4) .Can l order samples first to test the quality?
Yes,we can make samples before mass production.
5) .How about your production capacity?
Fully automatic production can meet your requirements.
