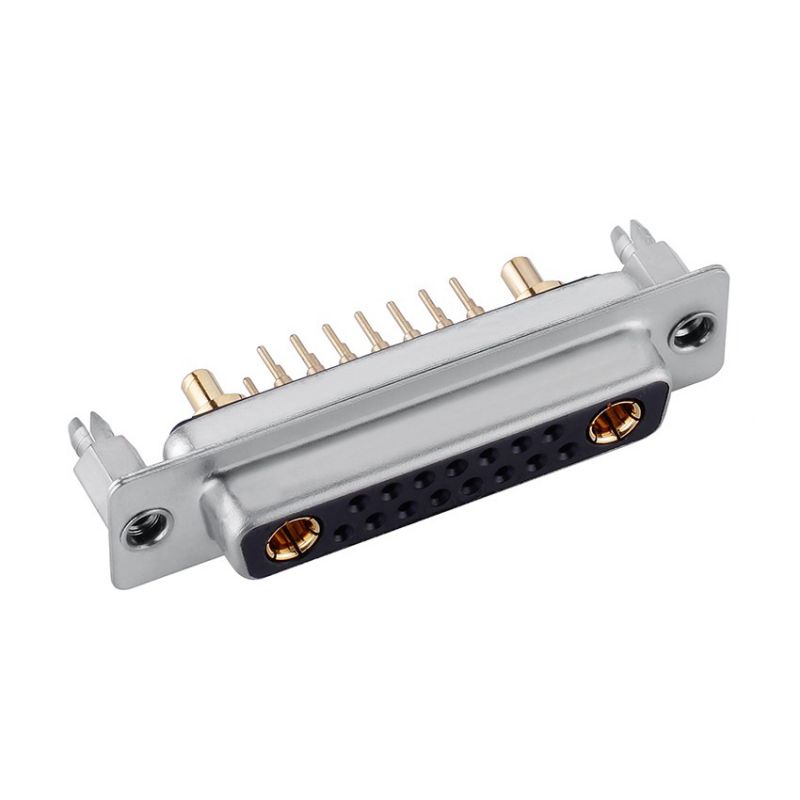

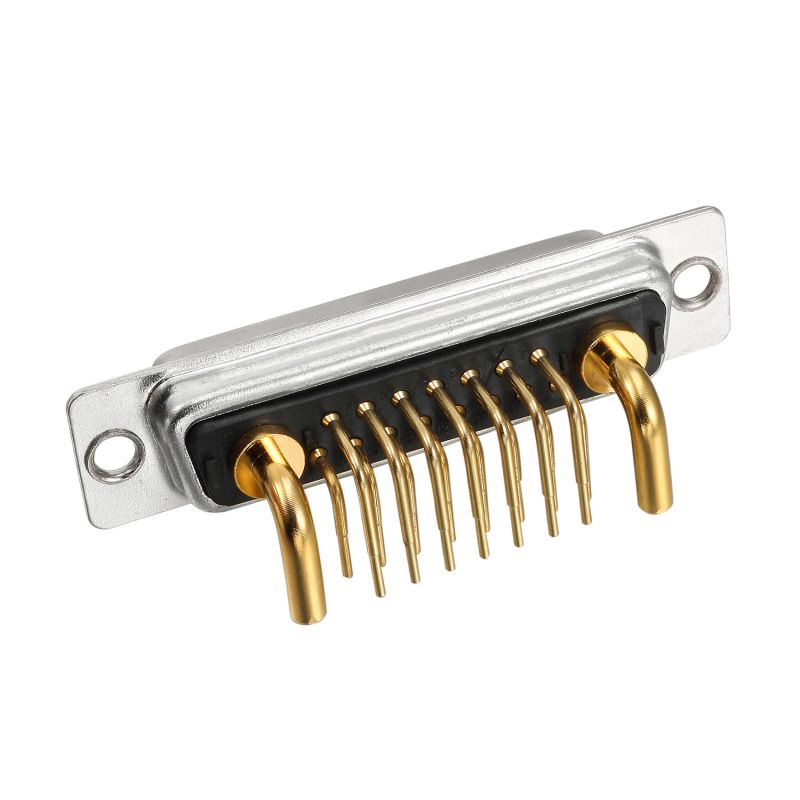

High Current D-Sub Combo 17W2 D Connector

SIGNALORIGIN® is a leading China High Current D-Sub Combo 17W2 D Connector manufacturer. The Power D-Sub mixes both power contacts and signal contacts in the same connector or all contact is signal contacts. D SUB 17W2 have 2pcs power contacts and and 15pcs signal contacts. The Power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different. Our D-Subminiature connector portfolio is designed for multiple applications along with specialized accessories that will provide any customer with an economical d-sub solution for any complex application.

Send Inquiry

Product Description

Product Introduction of the High Current D-SUB Combo 17W2 D Connector

SIGNALORIGIN® is the High Current D-Sub Combo 17W2 D Connector supplier.

The connector form factors are directly inspired by those of the traditional D-subminiature signal connectors, long used as standard I/O connectors in many types of electronic equipment. The power connectors are also principally used for I/O solutions because of their robust and shielded design. It is suitable for applications such as set-top box, energy meters and control devices.

Product Parameter (Specification) of the High Current D-SUB Combo 17W2 D Connector

Material	Insulator material	PBT+30% G.F (UL94V-O)
	Insulator color	Black/Blue (can be customized)
	Contacts material	Copper alloy
	Contact plating	Goldplated ,1U”~30U"
	Shell material	Steel/SPCC-SD, nickel or tin plated
Electrical	Dielectric rating	300V AC
	High power contacts current rating	10A-40A(customized)
	Contact resistance	2.7mΩ Max
	Insulation resistance	2000MΩ Min at 500V DC
Mechanical	Dielectric withstanding voltage	1000V AC rms at 1 minute
	Insertion force	￠1.0 :3.4 N /Pin（MAX) ￠3.6:12 N /Pin（MAX)
	Extraction force	￠1.0:0.3N /Pin MIN ￠3.6:2 N /Pin MIN
	Durability	500 cycles
	Operating temperature	-55°C～125°C

Product Feature of the High Current D-SUB Combo 17W2 D Connector

D-sub with flexibility, durability, sealability

Product Details of the High Current D-SUB Combo 17W2 D Connector

Product Qualification of the High Current D-SUB Combo 17W2 D Connector

Our warranty is 12 months after delivery. Signal Origin pays high attention to after-sales service.

Application of the High Current D-SUB Combo 17W2 D Connector

Robotics & Automation、Machine Manufacturing、Agriculture

Communication、Military、Medical、Transportation、Harsh Environment

FAQ

1) .What is the contact resistance of D-sub?

D-Sub Power & Hybrid

These connectors have up to 36 contact arrangements in signal, power, and coax and contact resistance less than 5mΩ.

2) .What is D-sub port used for?

Both D-sub connectors and VGA connectors are common standards for computer monitors, laptops, and other video devices. They're used for transmitting analog signals like audio and video from one source to another.

3) .Can l visit you?

Sure, welcome to you visit our factory at anytime.

4) .Do you operate a Quality Management System?

Yes, we have ls09001:2018 certification.

5) .What kind of payment does your company support?

T/T, if you have other payment please contact us.
