Combination D-Sub 2W2 High Current Connector

SIGNALORIGIN® is the Combination D-Sub 2W2 High Current Connector manufacturer. All contacts are machined and gold plating, the power contacts are available with current rating ranging between 10A – 40A with only the size of the terminal being different. The high performance D-sub connector work with a wide variety of electronics. They are often found on communications ports, creating connections between different products.

Send Inquiry

Product Description

Product Introduction of the Combination D sub 2W2 High Current Connector

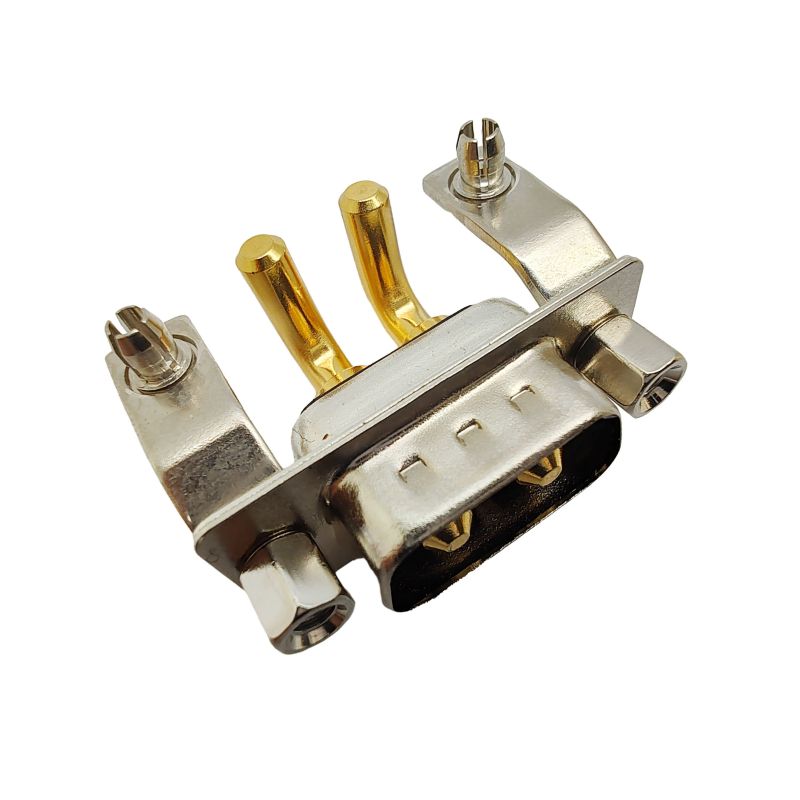

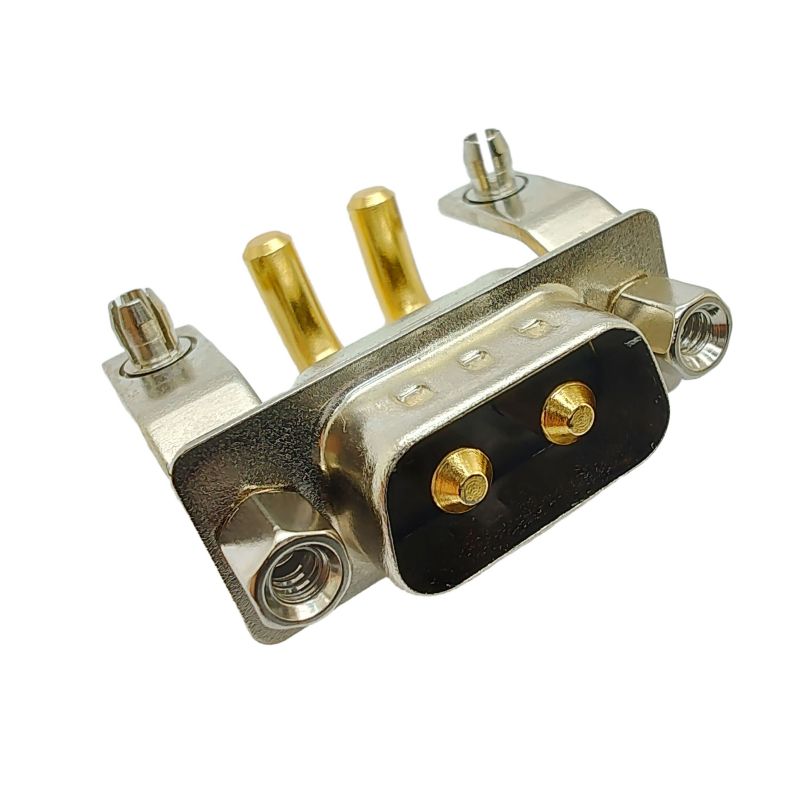

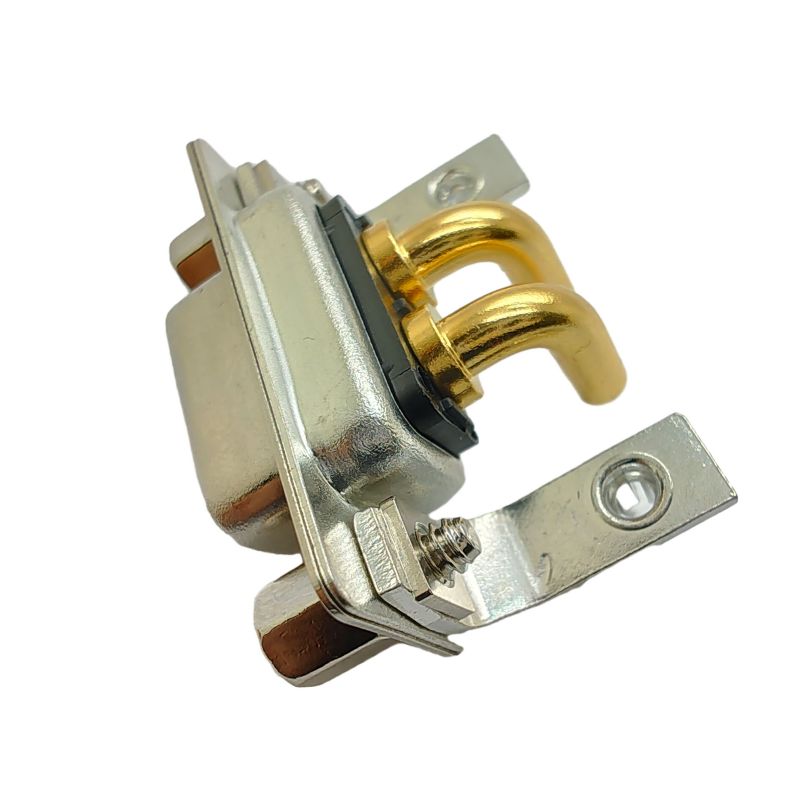

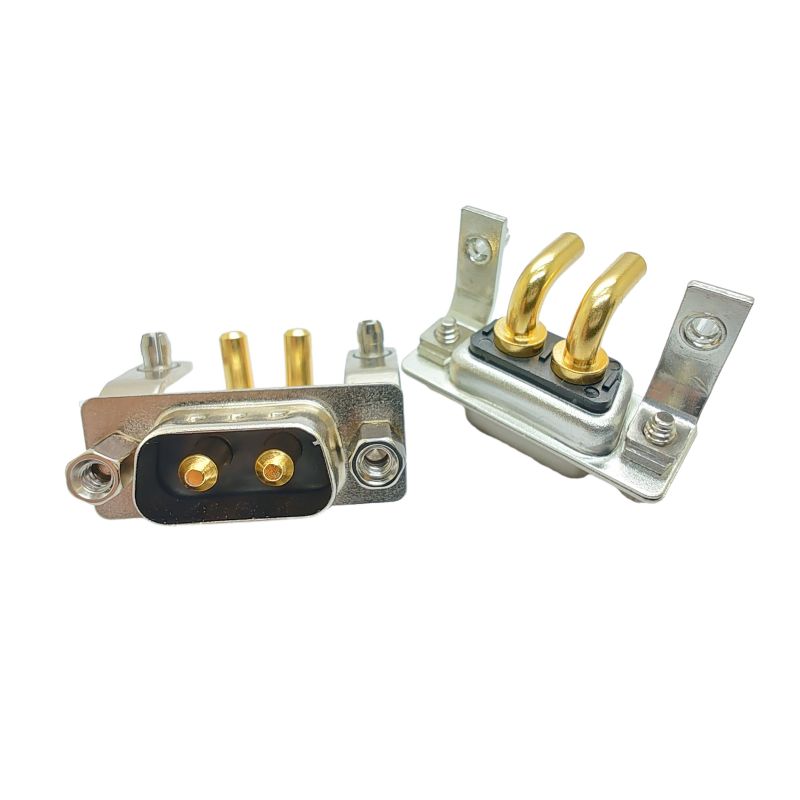

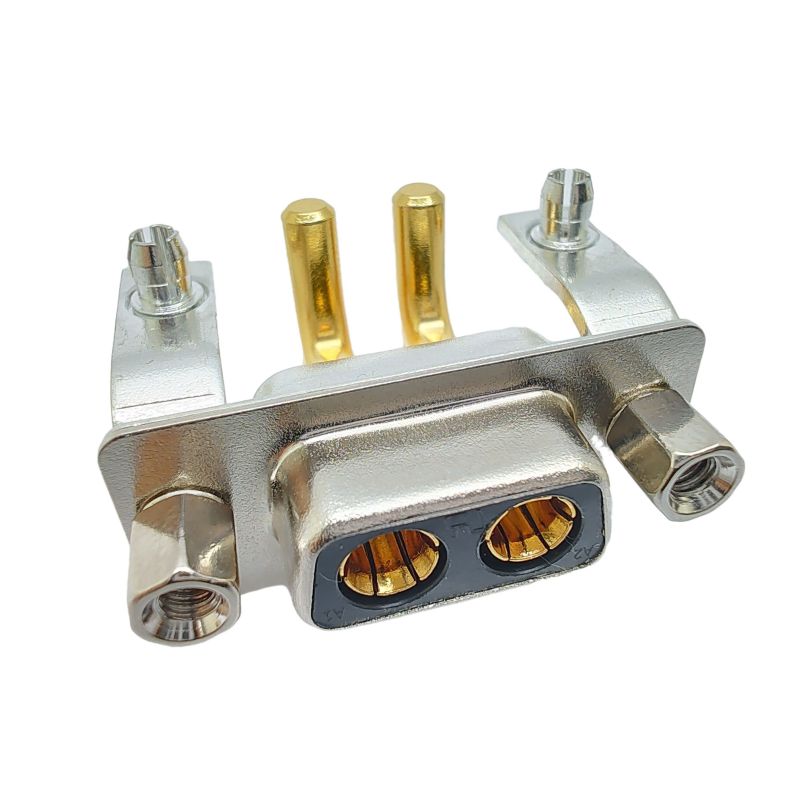

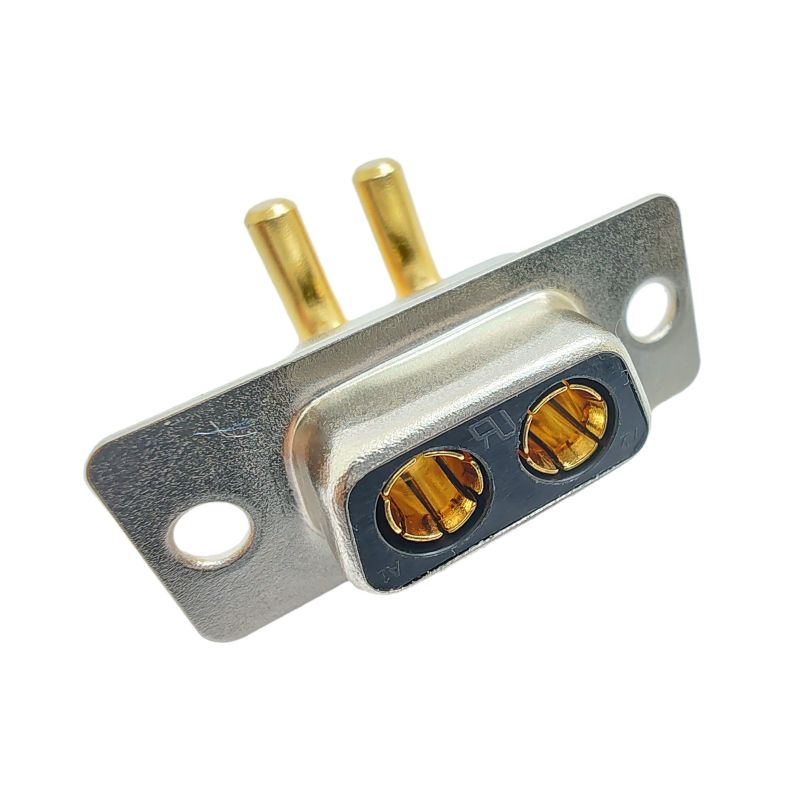

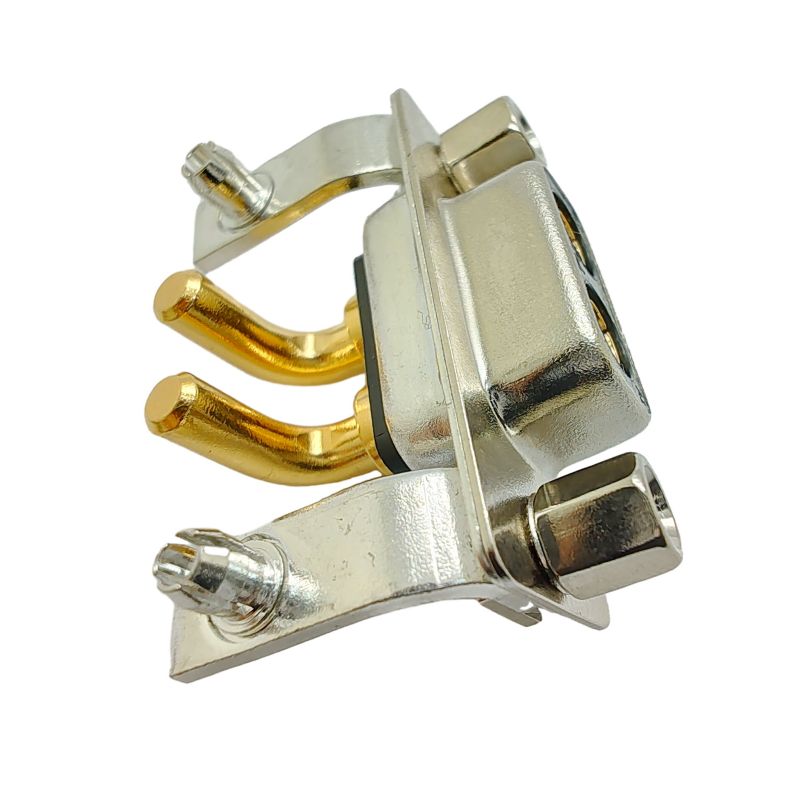

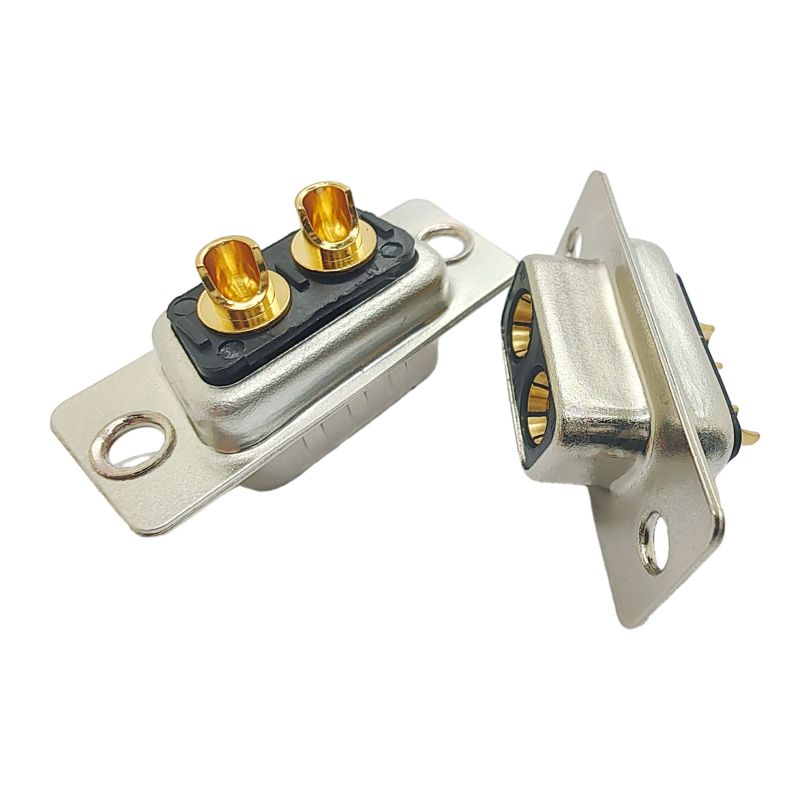

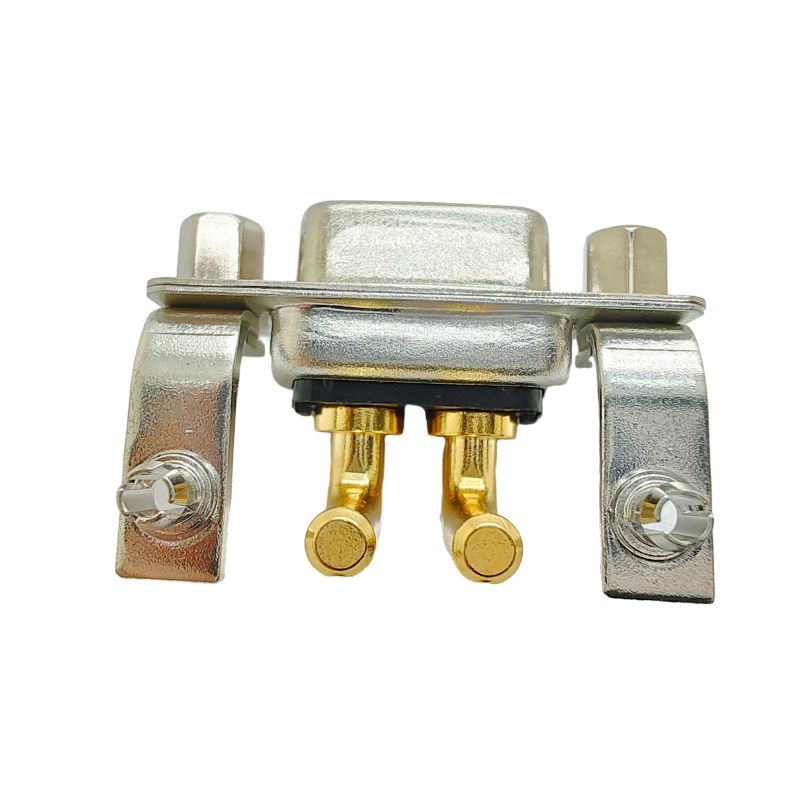

Find a huge selection of Combination D-Sub 2W2 High Current Connector from China at SIGNALORIGIN®. 2W2 connector is a 2W2 Combination D-sub Plug with Tin/Ni or Au finished steel shell, mixed-layout and PBT thermoplastic, 30% glass filled, UL94V-O rated insulator. Right angle contact termination. 2 Power positions.

Product Parameter (Specification) of the Combination D sub 2W2 High Current Connector

Material	Insulator material	PBT+30% G.F (UL94V-O)
	Insulator color	Black/Blue (can be customized)
	Contacts material	Copper alloy
	Contact plating	Goldplated ,1U”~30U"
	Shell material	Steel/SPCC-SD, nickel or tin plated
Electrical	Dielectric rating	300V AC
	High power contacts current rating	10A-40A(customized)
	Contact resistance	2.7mΩ Max
	Insulation resistance	2000MΩ Min at 500V DC
Mechanical	Dielectric withstanding voltage	1000V AC rms at 1 minute
	Insertion force	￠1.0 :3.4 N /Pin（MAX) ￠3.6:12 N /Pin（MAX)
	Extraction force	￠1.0:0.3N /Pin MIN ￠3.6:2 N /Pin MIN
	Durability	500 cycles
	Operating temperature	-55°C～125°C

Product Feature And Application of the Combination D sub 2W2 High Current Connector

High current rating:10A, 20A, 30A, 40A customization；

Our D-Sub connectors suitable for different business fields such as New Energy, Transportation, IT, Automobile, and so on.

Product Details of the Combination D sub 2W2 High Current Connector

Product Qualification of the Combination D sub 2W2 High Current Connector

Package of the Combination D sub 2W2 High Current Connector

Inner packing by PE bag and PET boxes,outer packing by carton.

FAQ

1) .What does D-sub stand for?

The D-subminiature is a versatile type of electrical connector. Commonly called “DB connectors” or “D-subs,” these compact connectors take their name from their characteristic D-shaped shield, which protects both sides of the connector from mechanical and electromagnetic interference.

2) .Can I use a D-sub connector for audio connections?

Yes, D-sub connectors can be used for audio connections in certain applications. The DB-25 connector is commonly used for analog audio connections. It provides a convenient way to connect multiple audio channels, such as in professional audio equipment and recording studios. However, for consumer audio devices like headphones or speakers, other connector types are more commonly used.

3) .What products and services your company mainly provide?

D-sub Standard Connectors；Circular connectors；Combination D-Sub(high current) ；waterproof connectors.

4) .How do I mount D sub connectors?

Mount D-Sub connector from inside of panel or enclosure using hex jack screws. Mate connectors and secure backshell thumbscrews to threaded jackscrews. Waterproof IP67 rating is achieved by gaskets / seals in backshell and silicone seal ring in connector.

5) .What about the lead time ?

5-7 working days for samples.
