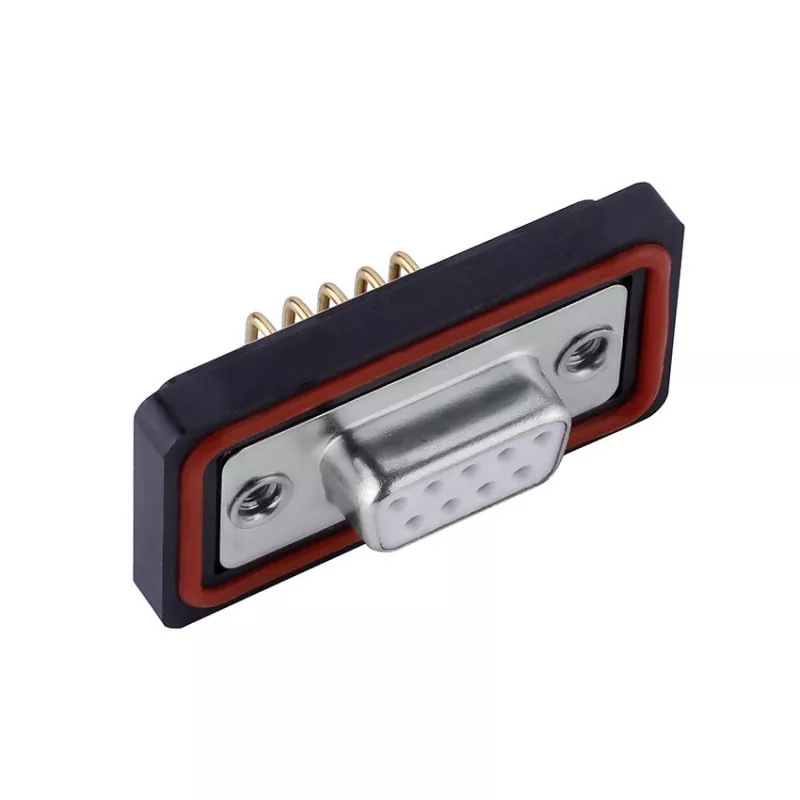

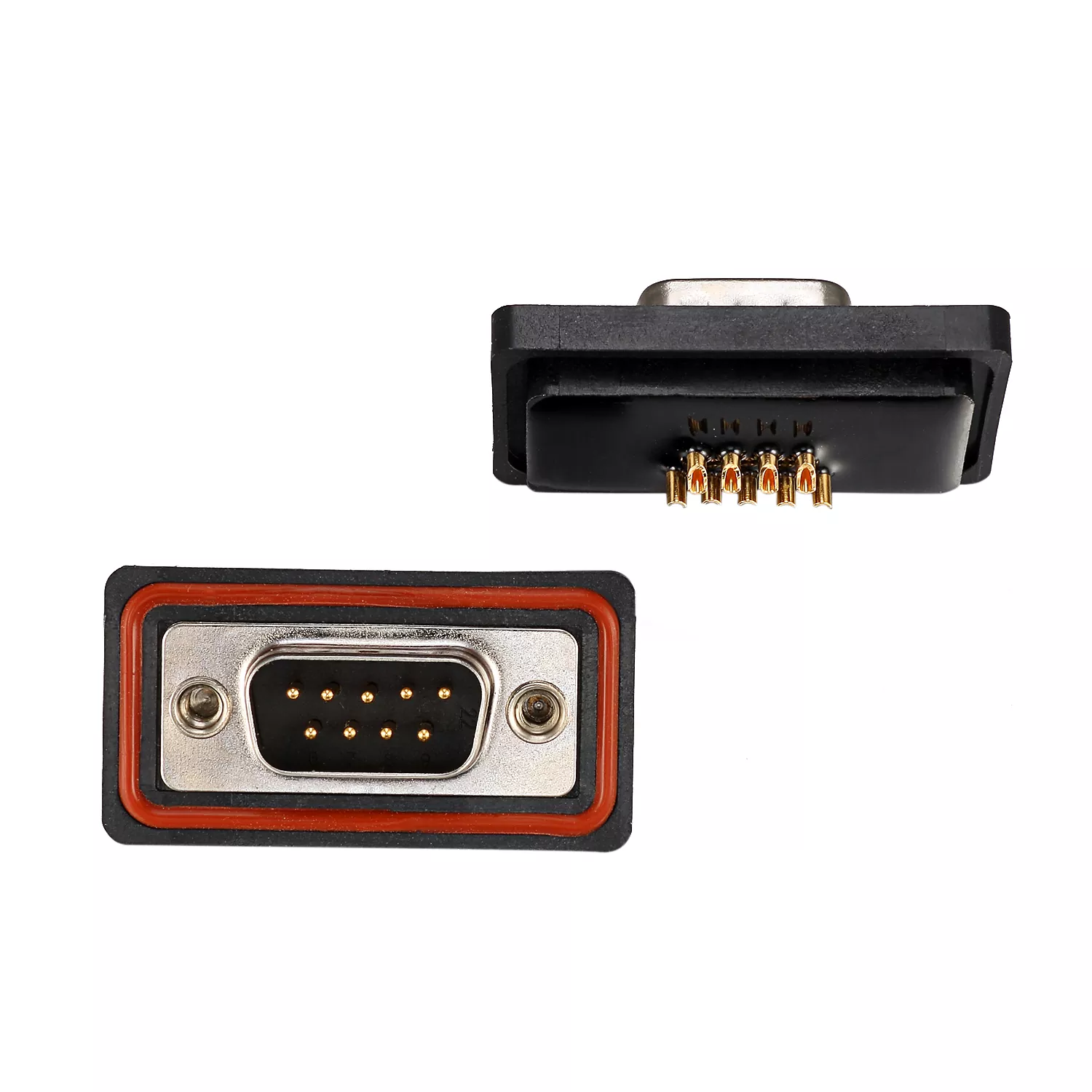

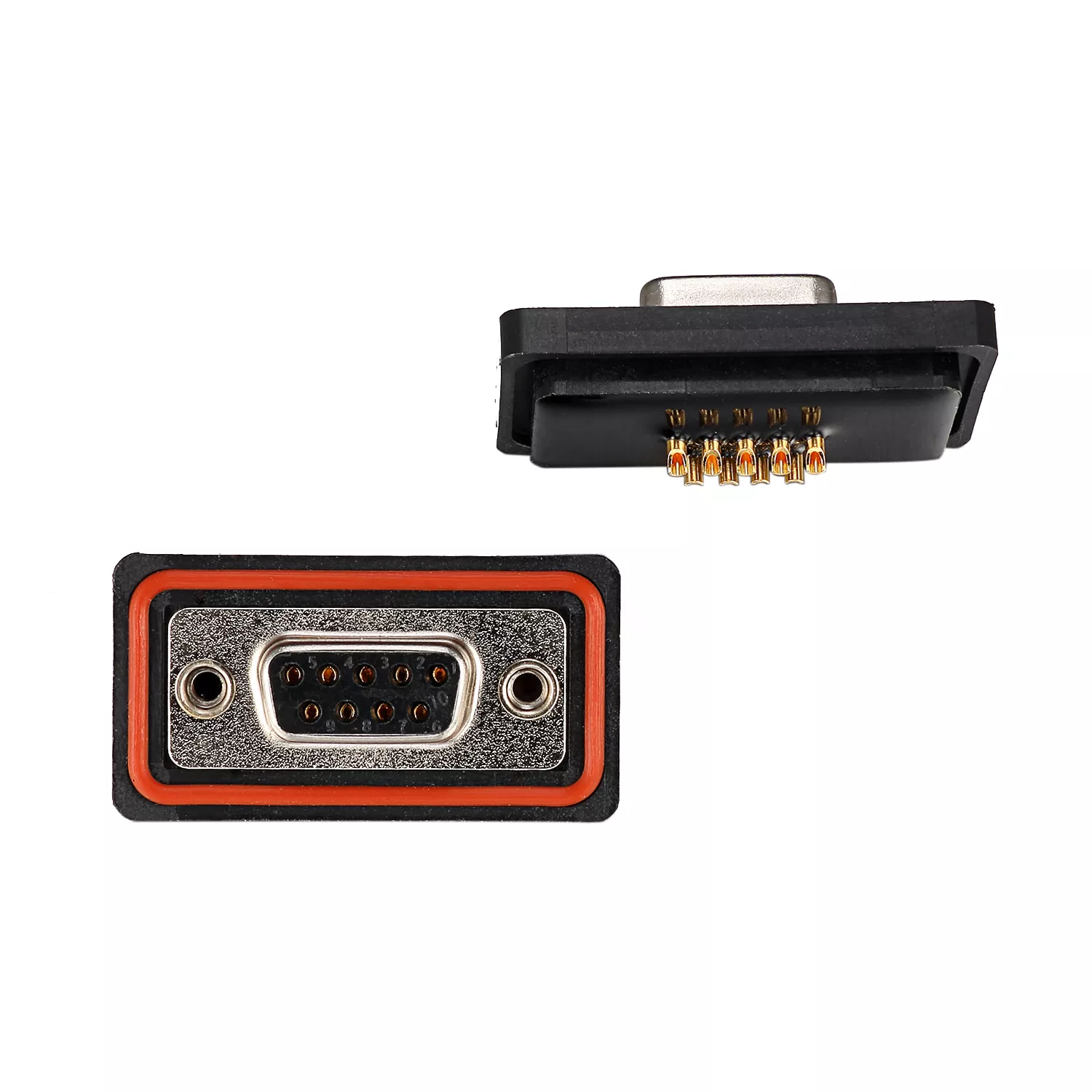

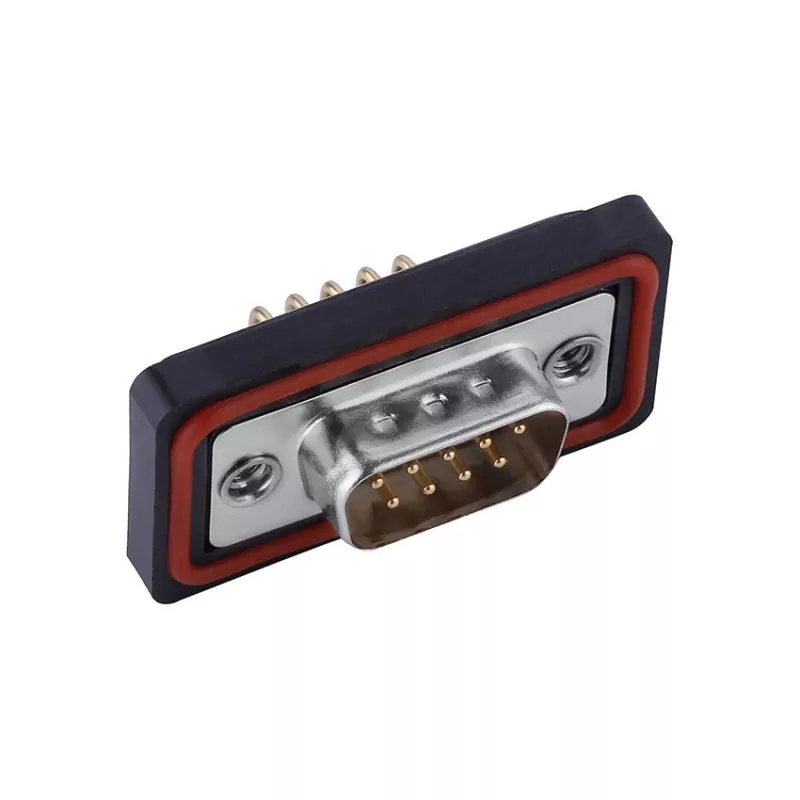

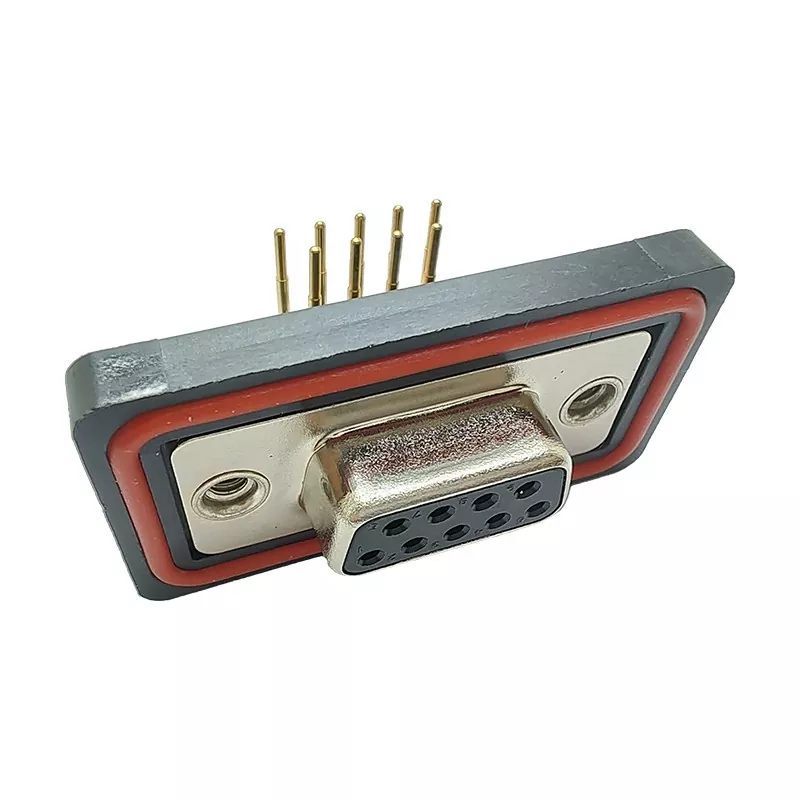

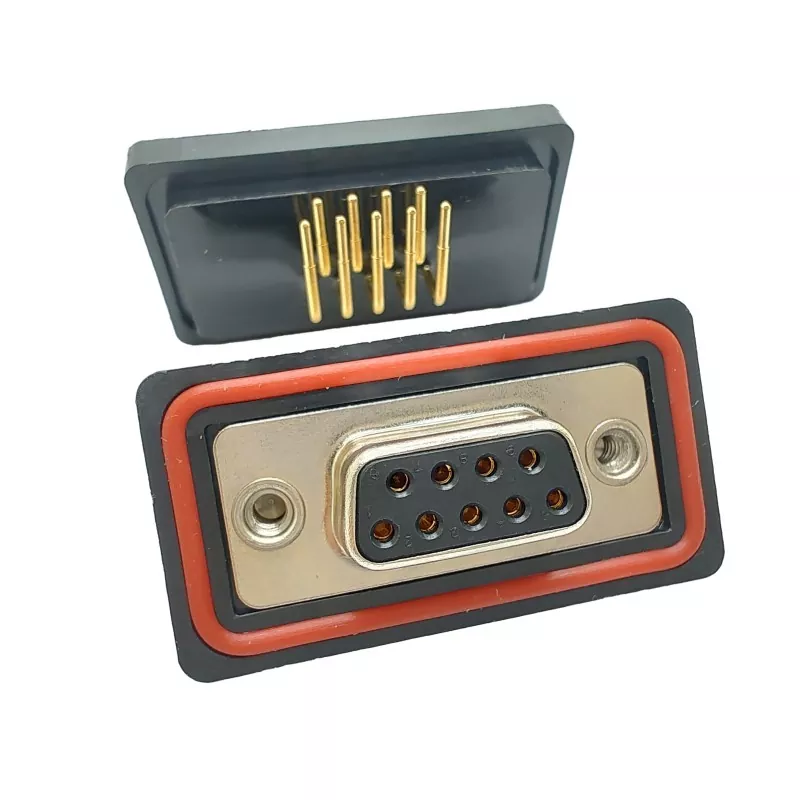

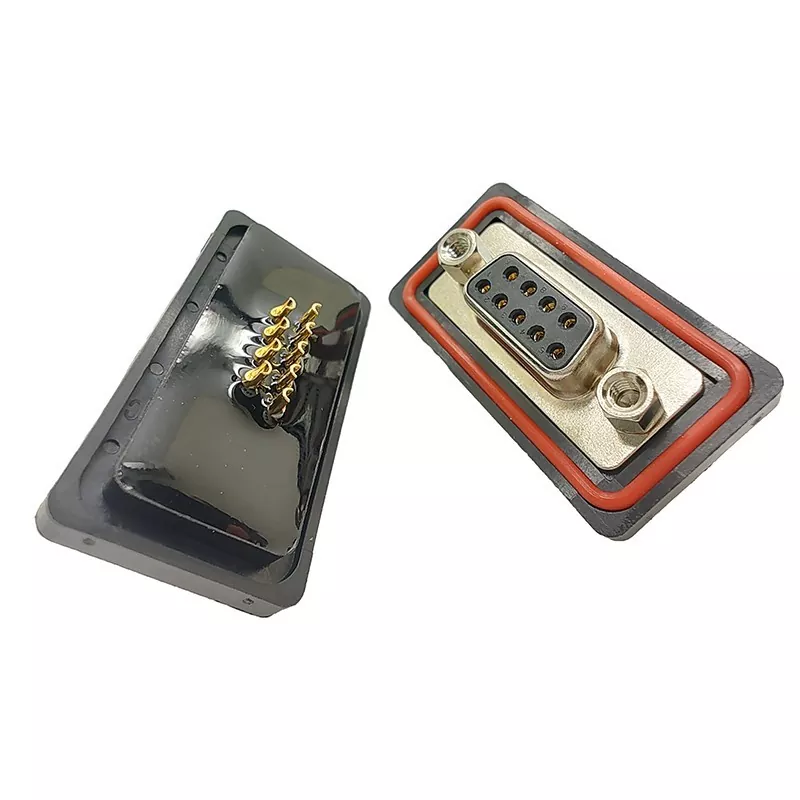

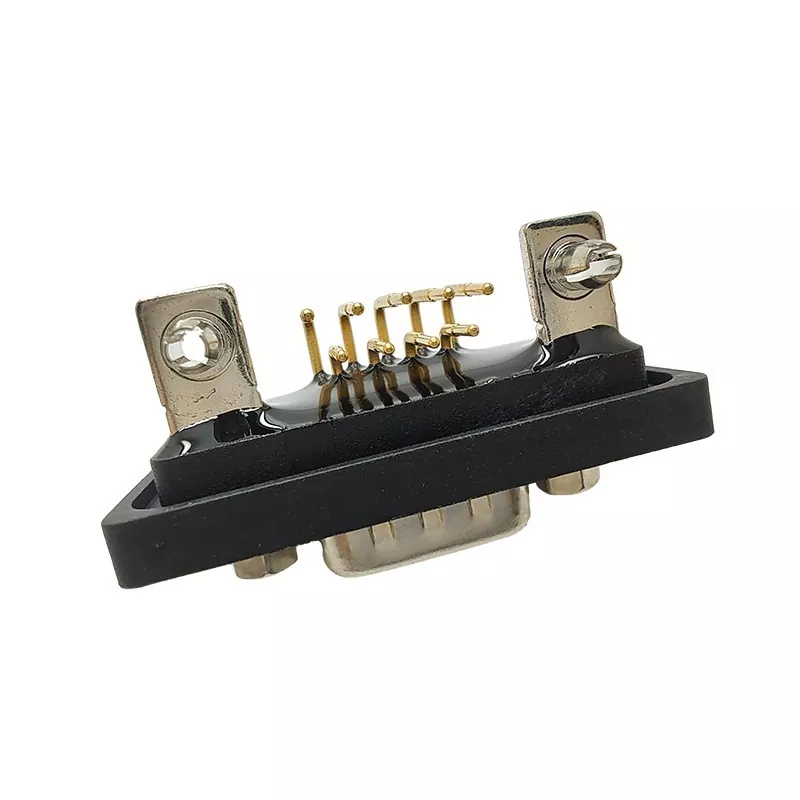

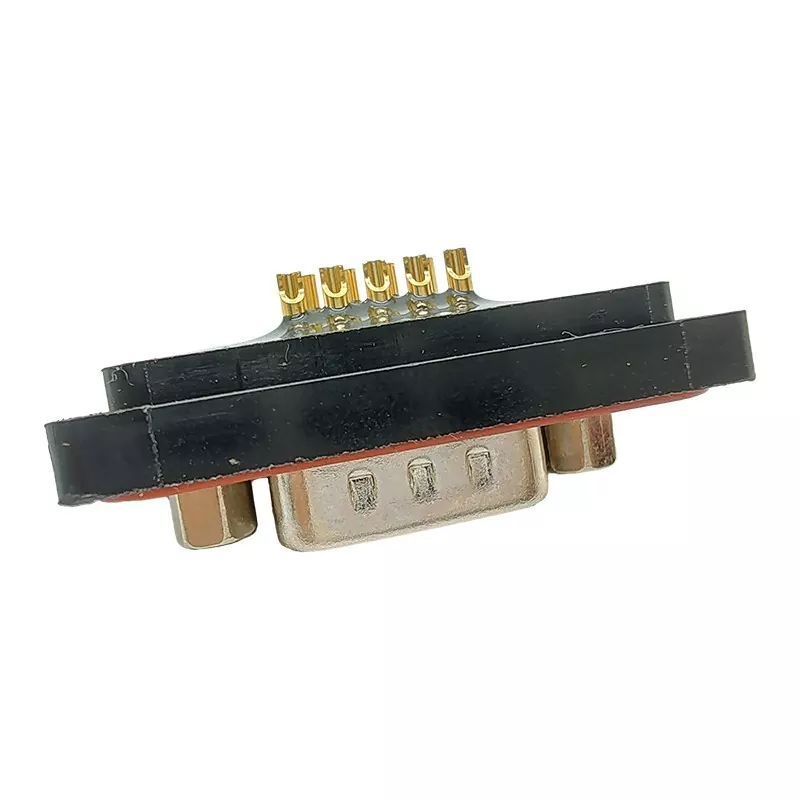

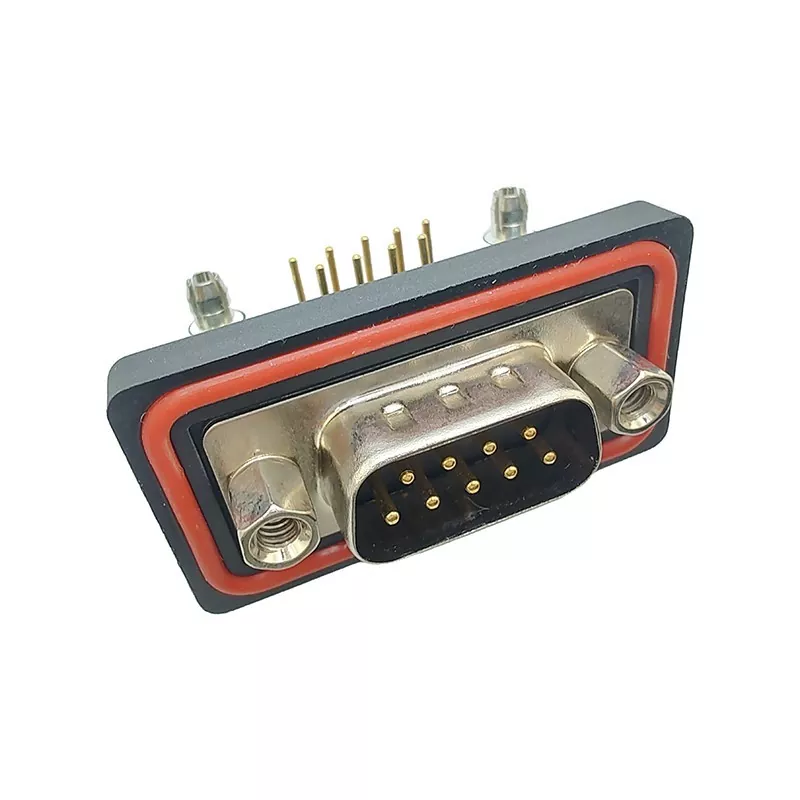

Waterproof IP67 9 D Sub Solder Cup Connector

SIGNALORIGIN® has been recognized as a d sub IP67 9 Connector factory in the Top 10 Internet Companies of 2015. With more than 10 years of experience in working with global manufacturers and wholesalers, and providing OEM services for well-known connector brands, Signal Origin has established a quality management system in accordance with GB/T19001-2008 idt ISO9001:2008 "Requirements for Quality Management System".

Send Inquiry

Product Description

Product Introduction of the Waterproof IP67 9pin D Sub Solder Cup Connector

What is a IP67 d sub 9 Connector?A d sub 9 connector, or more accurately a DE9 connector, is an abbreviation for a 9-pin d-sub connector. The prefix "D" stands for the d-shaped connector housing of the d-sub miniature connector. DE9 connectors were used for some Token Ring networks as well as other computer networks.

D Sub 9 connectors interface can be generally divided into two types, one is often referred to as the serial port, such as: RS232, RS485, RS422; and the other is the bus standard definition of a specific interface, such as CAN bus CAN interface, Profibus bus DP interface.There is no difference between the serial port and the bus interface in terms of appearance, and the distribution of the pins is exactly the same.

Product Parameter (Specification) of the Waterproof IP67 9pin D Sub Solder Cup Connector

Material

Insulator material

PBT+30% G.F (UL94V-O)

Insulator color

Black/Blue (can be customized)

Contacts material

Copper  alloy

Contact plating

Gold plated on nickel

Shell material

Steel/SPCC-SD, nickel or tin plated

Electrical

Dielectric rating

300V AC

Current rating

5AMP

Contacts OD

∮1.0

Contact resistance

15mΩ Max

Insulation resistance

5000MΩ Min at 500V DC

Mechanical

Dielectric withstanding voltage

1000V AC rms  at 1 minute

Insertion force

30N Max

Extraction force

3.3N Min

Durability

500 cycles

Operating temperature

-55°C ~125°C

Product Feature And Application of the Waterproof IP67 9pin D Sub Solder Cup Connector

Lean production, certified raw-material and stable vendor to ensure the quality of product to meet your strict quality needs.

Product Details of the Waterproof IP67 9pin D Sub Solder Cup Connector

Production process of the Waterproof IP67 9pin D Sub Solder Cup Connector

Deliver,Shipping And Serving of the Waterproof IP67 9pin D Sub Solder Cup Connector

FAQ

1).What is the difference between circular and rectangular connectors?

Circular is ideal for single-use low-power connection points, while rectangular connectors are perfect for high-power or multi-use connection. For some applications, each connection point needs to be separate.


2).What is the D-sub connector family?

(D-SUBminiature connectors) A family of plugs and sockets widely used in communications and on earlier PCs. For example, the analog VGA monitor interface uses a D-sub 15-pin plug and socket. Also called "DB connectors" and "D-subs," they come in 9, 15, 25, 37 and 50 pin varieties.


3).Is d-sub better than HDMI?

D-sub has some advantages in compatibility and transmission distance, especially for some old devices and users with special needs. However, under the requirements of modern digital signal transmission, HDMI is more in line with current and future multimedia device connection standards.


4).Is D-sub 15 pin VGA?

The VGA connector is a three-row, 15-pin D-subminiature connector referred to variously as DE-15, HD-15 or erroneously DB-15(HD).


5).What's your delivery time?

Our normal delivery time is 7-35 days. If it is urgent, we will deal with it urgently.
